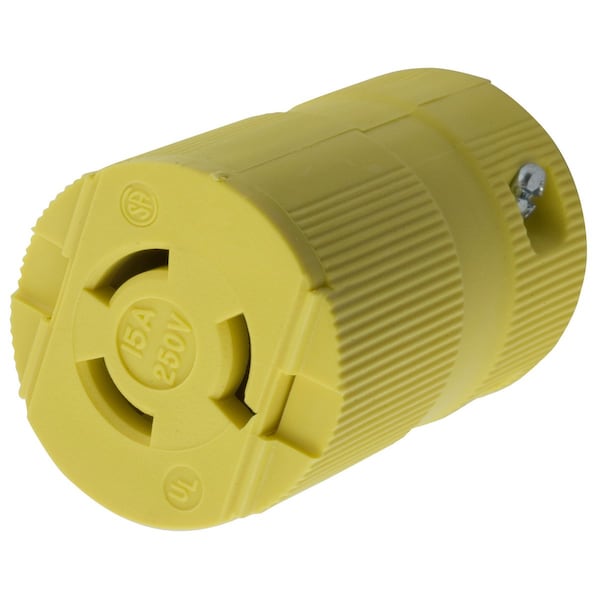

Dispositivos de bloqueo, Twist-Lock®, Valija, Cuerpo de conector hembra, 15A 250V, 2 polos 3 cables a tierra, L6-15R, Terminal de tornillo, Amarillo.
| Item - Plugs and Receptacles | Connector Body |
|---|---|
| Amps | 15 |
| Voltage | 250V AC |
| Number of Poles | 2-Pole |
| NEMA Configuration | L6-15R |
| Wiring Style | Valise |
| Color - Plugs and Receptacles | Yellow |
| Color | Yellow |
| IP Rating | IP20 Suitability |
| Material | Brass |
| Body Material | Yellow nylon |
| Standards | Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.; Certified for current interrupting at full rated current; UL/CSA |
| Special Features | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Application | Heavy Duty Industrial |
| Flame Resistant | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Dielectric Strength | Withstands 2,000V minimum |
| Weight | 0.2 |
| Type | Connector Body |
| Cord Dia. Range | .220"-.660" |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Voltage Rating Description | 250 VAC |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Nema Rating | L6-15R |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Height | 2.59 in |
| Material - Mounting Hardware | Cord Mounted |
| Insulation | Insulated Body |
| Cord Range | 0.220"-0.660" |
| Item Type | 15A Connector |
| Cable Range | 0.22 to 0.66 in |
| Number Of Wires | 3-Wire |
| Wire Size | #18 AWG to #12 AWG |
| Dimensions | 1.50 in x 1.50 in x 2.59 in |
| Amperage Rating | 15 A |
| Current / Amperage Rating | 15 A |
| Performance | Electrical - Current Interrupting - Certified for full rated current Electrical - Dielectric Voltage - Withstand 2,000V minimum Environmental - Flammability - HB or better per UL 94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Environmental - Terminal Identification - Terminals identified in accordance with UL 498 Mechanical - Terminal Accommodation - #18 AWG - #12 AWG stranded copper wire only. |
| Connectivity | Pressure Terminal Screws |
| Length | 1-1/2 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Current Rating | 15 A |
| Width | 1-1/2 in |
| Display Size | Standard |
| Package Quantity | 1 |
