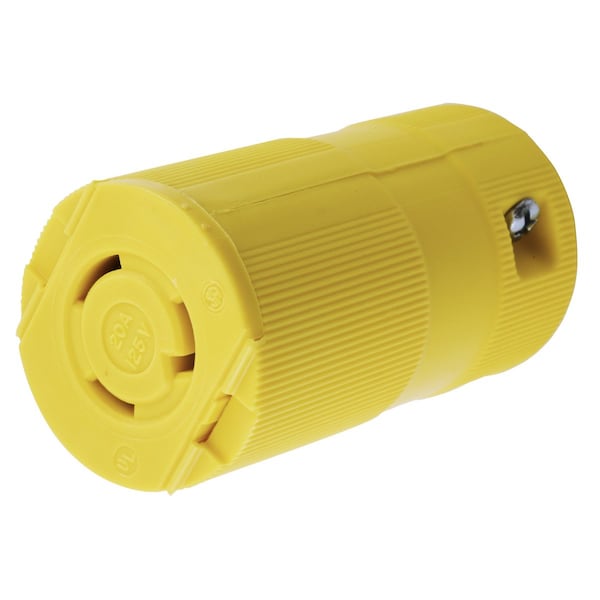

Locking Devices, Twist-Lock®, Valise, Female Connector Body, 20A 125V, 2-Pole 3-Wire Grounding, L5-20R, Screw Terminal, Yellow
| Item - Plugs and Receptacles | Connector Body |
|---|---|
| Amps | 20 |
| Voltage | 125V AC |
| Number of Poles | 2-Pole |
| NEMA Configuration | L5-20R |
| Wiring Style | Valise |
| Color - Plugs and Receptacles | Yellow |
| Color | Yellow |
| IP Rating | IP20 Suitability |
| Standards | Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.; Certified for full rated current; UL/CSA |
| Material | .031" (.8) Brass |
| Special Features | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Body Material | Yellow nylon |
| Application | Heavy Duty Industrial |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Cord Dia. Range | .325"- .720" |
| Dielectric Strength | Withstands 2,000V minimum |
| Weight | 0.25 |
| Type | Connector Body |
| Flame Resistant | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Length | 1.81 in |
| Width | 1.81 in |
| Height | 3-1/2 in |
| Cable Range | 0.325 to 0.72 in |
| Amperage Rating | 20 A |
| Item Type | 20A Valise® Connector |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Current Rating | 20 A |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Current / Amperage Rating | 20 A |
| Voltage Rating Description | 125 VAC |
| Connectivity | Pressure Terminal Screws |
| Horsepower - Maximum | 1 |
| Material - Mounting Hardware | Cord Mounted |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Dimensions | 1.81 in x 1.81 in x 3.5 in |
| Number Of Wires | 3-Wire |
| Nema Rating | L5-20R |
| Insulation | Insulated Body |
| Wire Size | #14 AWG to #8 AWG |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Display Size | Standard |
| Cord Range | 0.325"-0.720" |
| Package Quantity | 1 |
