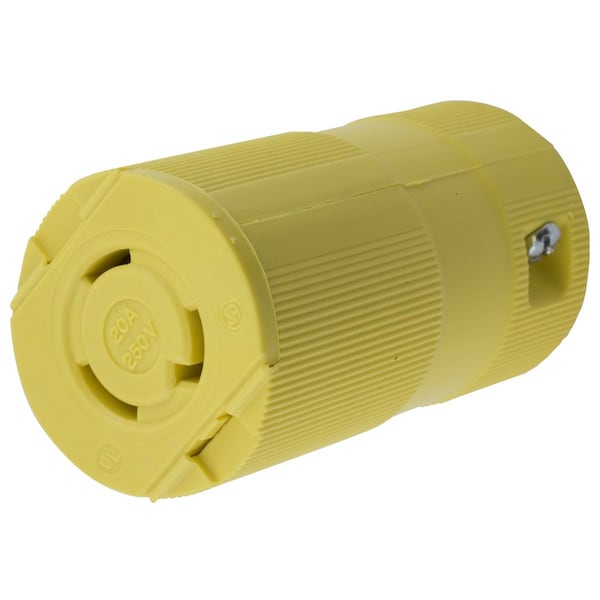

Dispositivos de bloqueo, Twist-Lock®, Valija, Cuerpo del conector hembra, 20A 250V, 2 polos 3 cables de puesta a tierra, L6-20R, Terminal de tornillo, Amarillo.
| Item - Plugs and Receptacles | Connector Body |
|---|---|
| Amps | 20 |
| Voltage | 250V AC |
| Number of Poles | 2-Pole |
| NEMA Configuration | L6-20P |
| Wiring Style | Valise |
| Color - Plugs and Receptacles | Yellow |
| Color | Yellow |
| Body Material | Yellow nylon |
| Special Features | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Material | .031" (.8) Brass |
| Standards | Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.; Certified for current interrupting at full rated current; UL/CSA |
| IP Rating | IP20 |
| Application | Heavy Duty Industrial |
| Dielectric Strength | 2,000 minimum |
| Cord Dia. Range | .325"- .720" |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Flame Resistant | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Weight | 0.25 |
| Amperage Rating | 20 A |
| Voltage Rating Description | 250 VAC |
| Insulation | Insulated Body |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Nema Rating | L6-20R |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Current / Amperage Rating | 20 A |
| Width | 1.81 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Cord Range | 0.325"-0.720" |
| Material - Mounting Hardware | Cord Mounted |
| Current Rating | 20 A |
| Wire Size | #14 AWG to #8 AWG |
| Number Of Wires | 3-Wire Grounding |
| Performance | Electrical - Current Interrupting - Certified for full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL 94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #14 AWG- #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Item Type | 20A Valise® Connector |
| Connectivity | Pressure Terminal Screws |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Length | 3-1/2 in |
| Dimensions | 3.50 in x 1.81 in x 1.81 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Height | 1.81 in |
| Display Size | Standard |
| Package Quantity | 1 |
