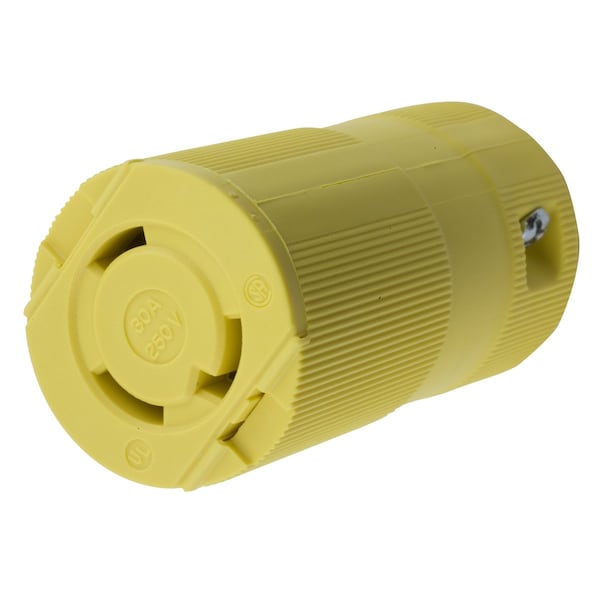

Locking Devices, Twist-Lock®, Valise, Female Connector Body, 30A 250V, 2-Pole3-Wire Grounding, L6-30R, Screw Terminal, Yellow
| Item - Plugs and Receptacles | Connector Body |
|---|---|
| Amps | 30 |
| Voltage | 250V AC |
| Number of Poles | 2-Pole |
| NEMA Configuration | L6-30R |
| Wiring Style | Valise |
| Color - Plugs and Receptacles | Yellow |
| IP Rating | IP20 |
| Body Material | Yellow nylon |
| Standards | Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.; Certified for current interrupting at full rated current; UL/CSA |
| Phase | Single Phase |
| Material | .031" (.8) Brass |
| Special Features | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Application | Heavy Duty Industrial |
| Flame Resistant | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Weight | 0.25 |
| Cord Dia. Range | .590"-.930" |
| Dielectric Strength | 2,000V minimum |
| Length | 3-1/2 in |
| Height | 1.78 in |
| Width | 1.78 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Insulation | Insulated Body |
| Current Rating | 30 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number Of Wires | 3-Wire Grounding |
| Display Size | Standard |
| Connectivity | Pressure Terminal Screws |
| Material - Mounting Hardware | Cord Mounted |
| Voltage Rating Description | 250 VAC |
| Amperage Rating | 30 A |
| Nema Rating | L6-30R |
| Item Type | 30A Valise® Connector |
| Dimensions | 3.5 in x 1.78 in x 1.78 in |
| Cord Range | 0.590"-0.930" |
| Wire Size | #14 AWG to #8 AWG |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Current / Amperage Rating | 30 A |
| Package Quantity | 1 |
