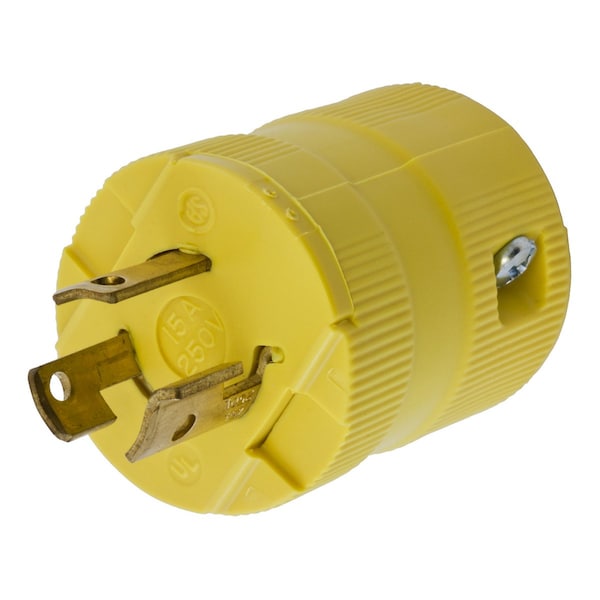

Locking Devices, Twist-Lock®, Valise, Male Plug, 15A 250V, 2-Pole 3-Wire Grounding, L6-15P, Screw Terminal, Yellow
| Item - Plugs and Receptacles | Plug |
|---|---|
| Length | 1-1/2 in |
| Amps - Plugs and Receptacles | 15A |
| Voltage - Plugs and Receptacles | 250V AC |
| Number of Poles | 2-Pole, 3-Wire Grounding |
| Phase | Single Phase |
| Standards | Terminals identified in accordance with UL 498,CSA |
| HP | 1-1/2 |
| Cord Size | .220"-.660" |
| NEMA Configuration | L6-15P |
| Color | Yellow |
| IP Rating | IP20 |
| Application | Extra Heavy Duty Industrial |
| Material | Nylon |
| Weight (Lbs.) | 0.1 |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Wire Size | #18 AWG to #12 AWG |
| Flammability | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Temp. Rise | Max 30C Temp. Rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Blade Material | Brass |
| Height | 1.87 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Material - Mounting Hardware | Cord Mounted |
| Width | 1-1/2 in |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Cord Type | All Listed Portables |
| Amperage Rating | 15 A |
| Dimensions | 1-1/2 in x 1-1/2 in x 1.87 in |
| Display Size | Standard Sized |
| Cord Range | 0.220"-0.660" |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Connectivity | Pressure Terminal Screws |
| Type | Plugs |
| Dielectric Strength | Withstands 2,000V minimum |
| Current Rating | 15 A |
| Voltage Rating Description | 250 VAC |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL 94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG - #12 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Number Of Wires | 3-Wire |
| Cable Range | 0.22 to 0.66 in |
| Nema Rating | L6-15P |
| Item Type | 15A Valise® Plug |
| Horsepower - Maximum | 1.5 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Current / Amperage Rating | 15 A |
| Package Quantity | 1 |
