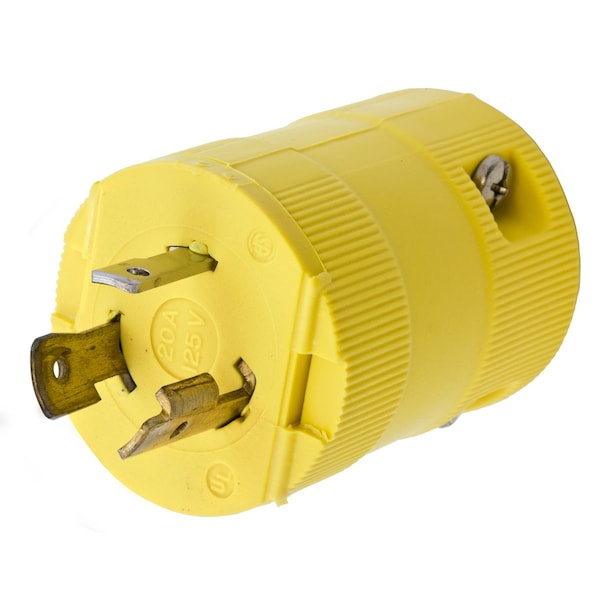

Dispositivos de bloqueo, Twist-Lock®, Valija, Clavija macho, 20A 125V, 2 polos 3 cables de conexión a tierra, L5-20P, Terminal de tornillo, Amarillo
| Item - Plugs and Receptacles | Plug |
|---|---|
| Length | 1.78 in |
| Amps - Plugs and Receptacles | 20A |
| Voltage - Plugs and Receptacles | 125V AC |
| Number of Poles | 2-Pole, 3-Wire Grounding |
| Phase | Single Phase |
| Color | Yellow |
| Standards | Terminals identified in accordance with UL 498, FED SPEC UL/CSA |
| Application | Extra Heavy Duty Industrial |
| NEMA Configuration | L5-20P |
| Cord Size | .325"-.720" |
| IP Rating | IP20 |
| Material | Nylon |
| HP | 1 |
| Wire Size | #18 AWG to #10 AWG |
| Blade Material | Brass |
| Operating Temp. | Maximum Continuous 75A deg C Minimum -40A deg C (w/o impact) |
| Temp. Rise | Max 30C Temp. Rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Flammability | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Weight (Lbs.) | 0.3 |
| Nema Rating | L5-20P |
| Connectivity | Pressure Terminal Screws |
| Amperage Rating | 20 A |
| Current / Amperage Rating | 20 A |
| Dimensions | 1.78 in x 1.78 in x 2-1/2 in |
| Cable Range | 0.325 to 0.72 in |
| Height | 2-1/2 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Horsepower - Maximum | 1 |
| Current Rating | 20 A |
| Material - Mounting Hardware | Cord Mounted |
| Cord Range | 0.325"-0.720" |
| Performance | Electrical - Current Interrupting - Certified for full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL 94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Environmental - Terminal Identification - Terminals identified in accordance with UL 498 Mechanical - Terminal Accommodation - #18 AWG - #10 AWG stranded copper wire only. |
| Type | Plugs |
| Dielectric Strength | Withstands 2,000V minimum |
| Cord Type | All Listed Portables |
| Number Of Wires | 3-Wire |
| Display Size | Standard Sized |
| Voltage Rating Description | 125 VAC |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Item Type | 20A Valise® Plug |
| Width | 1.78 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Package Quantity | 1 |
