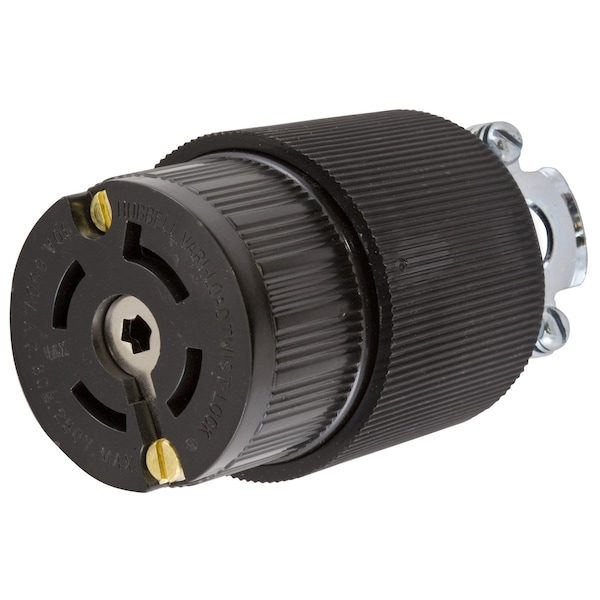

Dispositivos de bloqueo, Twist-Lock®, VariLoad, Cuerpo del conector hembra, 30A 250V DC/600V AC, No NEMA, Terminal de tornillo, Pin central único.
| Item - Plugs and Receptacles | Connector Body |
|---|---|
| Amps | 30 |
| Voltage | 250V DC, 600V AC |
| Number of Poles | 4-Pole |
| Color - Plugs and Receptacles | Black |
| Color | Black |
| Height | 3.79 in |
| Width | 2.13 in |
| Application | Heavy Duty Industrial |
| Length | 2.13 in |
| Body Material | Black Thermoset |
| Standards | Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.; Certified for current interrupting at full rated current; UL |
| Special Features | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Material | .031" (.8) Brass |
| Dielectric Strength | Withstands 2,000V minimum |
| Cord Dia. Range | .625"-1.00" |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Weight | 0.5 |
| Type | Connector Body |
| Flame Resistant | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Listed to UL 498 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL 94 or CSA 22.2 No. 0.6 Environmental - Operating Temperatures - Maximum Continuous 75°C,Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #14 AWG - #10 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Item Type | 30A Variload® Connector |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Wire Size | #14 AWG to #10 AWG |
| Current Rating | 30 A |
| Number Of Wires | 5-Wire |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Cable Range | 5/8 to 1 in |
| Connectivity | Pressure Terminal Screws |
| Voltage Rating Description | 250 VDC/600 VAC |
| Material - Mounting Hardware | Cord Mounted |
| Dimensions | 2.13 in x 2.13 in x 3.79 in |
| Amperage Rating | 30 A |
| Display Size | Standard |
| Insulation | Insulated Body |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Current / Amperage Rating | 30 A |
| Package Quantity | 1 |
