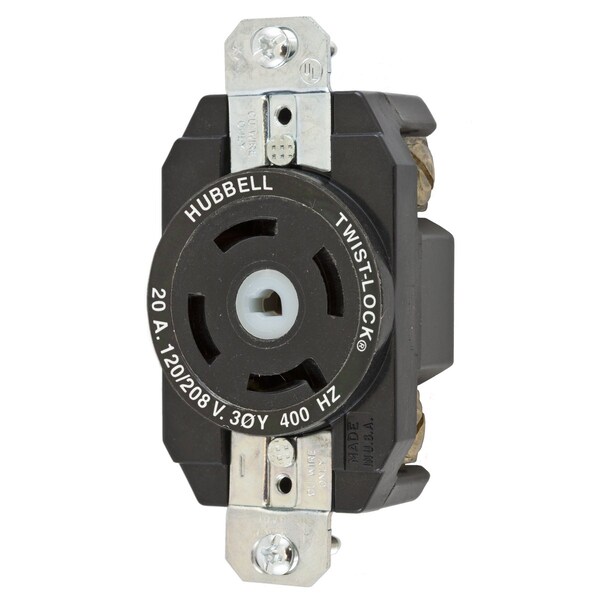

Locking Devices, Twist-Lock®, VariLoad, Flush Receptacle, 20A 3-Phase Wye 120/208V AC- 400Hz, Non-NEMA, Screw Terminal, Unique Center Pin
| Item | Single Receptacle |
|---|---|
| Voltage | 250V120/208V AC |
| Amps | 20 |
| Color | Black |
| Number of Poles | 4-Pole |
| Phase | Three Phase |
| Standards | Certified for current interrupting at full rated current; UL |
| Special Features | Molded In or Stamped On |
| Material | zinc plated Steel |
| Application | Heavy Duty Industrial |
| Weight (Lbs.) | 0.3 |
| Lock Type | Variload |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Wire Size | #14 AWG - #10 AWG solid or stranded copper wire only. |
| Spring Material | .040" Brass |
| Flammability | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Base Material | Black Thermoset |
| Display Size | Standard Sized Product |
| Voltage Rating Description | 3 Phase WYE 120/208 VAC |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #14 AWG - #10 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Item Type | 20A Variload® Receptacle |
| Industry Standard(s) | Listed to UL 498 |
| Material - Mounting Hardware | Screw Mounting |
| Current / Amperage Rating | 20 A |
| Dimensions | 3.28 in x 1.7 in x 1.27 in |
| Length | 3.28 in |
| Dielectric Strength | Withstands 2,000V minimum |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Current Rating | 20 A |
| Type | Receptacle |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Number Of Wires | 5-Wire |
| Width | 1.7 in |
| Height | 1.27 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Amperage Rating | 20 A |
| Connectivity | Screw Terminals |
| Package Quantity | 1 |
