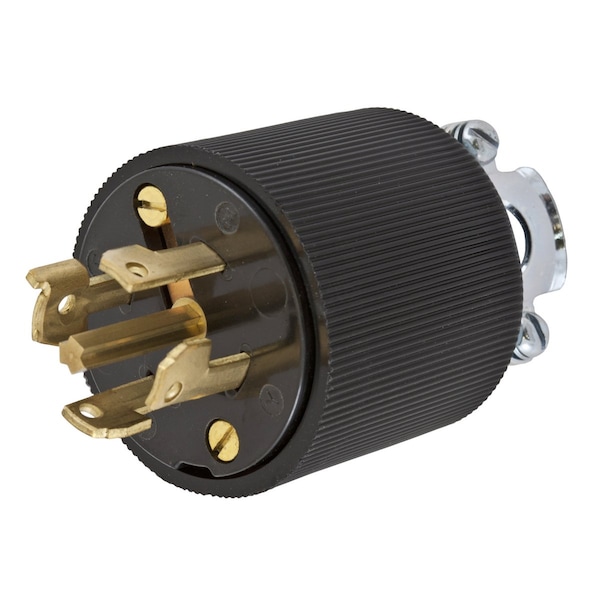

Dispositivos de bloqueo, Twist-Lock®, VariLoad, clavija macho, 30A 250V DC/600V AC, 4 polos 5 hilos con conexión a tierra, no NEMA, terminal de tornillo, negro, pin central único.
| Item - Plugs and Receptacles | Plug |
|---|---|
| Length | 2.77 in |
| Amps - Plugs and Receptacles | 30A |
| Voltage - Plugs and Receptacles | 250V DC, 600V AC |
| Number of Poles | 4-Pole, 5-Wire Grounding |
| Phase | Multi Phase |
| Application | Heavy Duty Industrial |
| Cord Size | .625"-1.00" |
| Material | Nylon |
| Standards | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Color | Black |
| Weight (Lbs.) | 0.35 |
| Wire Size | #14 AWG to #10 AWG |
| Flammability | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Blade Material | Brass |
| Temp. Rise | Max 30C Temp. Rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Height | 2.13 in |
| Width | 2.13 in |
| Voltage Rating Description | 250 VDC/600 VAC |
| Connectivity | Screw Terminals |
| Display Size | Standard Sized |
| Cord Type | All Listed Portables |
| Cord Range | 0.625"-1.00" |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Current / Amperage Rating | 30 A |
| Item Type | Plug |
| Dimensions | 2.77 in x 2.13 in x 2.13 in |
| Dielectric Strength | Withstands 2,000V minimum |
| Material - Mounting Hardware | Cord Mounted |
| Nema Rating | Non-NEMA |
| Amperage Rating | 30 A |
| Current Rating | 30 A |
| Number Of Wires | 5-Wire Grounding |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Package Quantity | 1 |
