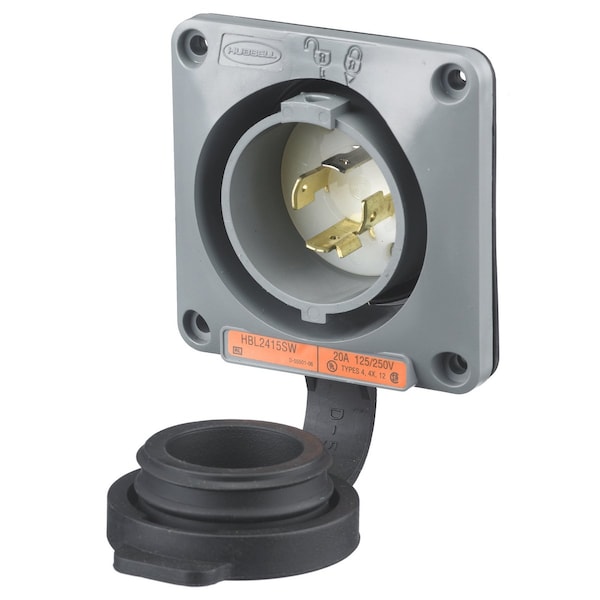

Locking Devices, Twist-Lock®, Watertight Safety Shroud, Flanged Inlet, 20A 125/250V, 3-Pole 4-Wire Grounding, L14-20P, Screw Terminal, Gray
| Phase | Single Phase |
|---|---|
| Standards | FED SPEC UL/CSA, UL 498 |
| Cord Size | 16 to 8 AWG |
| NEMA Configuration | L21-20P |
| Item | Flanged Inlet |
| Amps | 20 |
| NEMA Rating | 4, 4X, 12 |
| Voltage | 120/208V AC |
| IP Rating | IP66 |
| Color | Gray |
| Number of Poles | 4 |
| Material | Thermoplastic |
| Number of Wires | 5 |
| Retainer Material | Clear Polycarbonate |
| Dielectric Strength | 2,000 V |
| Contact Material | Brass |
| Weight | 0.65 lb |
| Product Type | Shrouded Watertight |
| Screw Material | Stainless Steel |
| Housing Material | Valox |
| Temp. Rise | 30°C |
| Flammability | UL 94 V0 |
| Operating Temp. | -40 to 75°C |
| Application | Industrial |
| Insulation | Insulated Body |
| Horsepower - Maximum | 2 |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Environmental Conditions | Watertight |
| Amperage Rating | 20 A |
| Industry Standard(s) | UL Listed, CSA Certified To Type 4, 4X And Type 12 |
| Type | Flanged Inlet |
| Dimensions | 3-3/4 in x 3-3/4 in x 2.44 in |
| Connectivity | Screw Terminals |
| Display Size | Standard Sized Product |
| Height | 2.44 in |
| Width | 3-3/4 in |
| Current Rating | 20 A |
| Wire Size | #16 AWG to #8 AWG |
| Item Type | 20A Watertight Safety-Shroud® Flanged Inlet |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Length | 3-3/4 in |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17 Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Voltage Rating Description | 125/250 V |
| Material - Mounting Hardware | Screw Mounting |
| Current / Amperage Rating | 20 A |
| Package Quantity | 1 |
