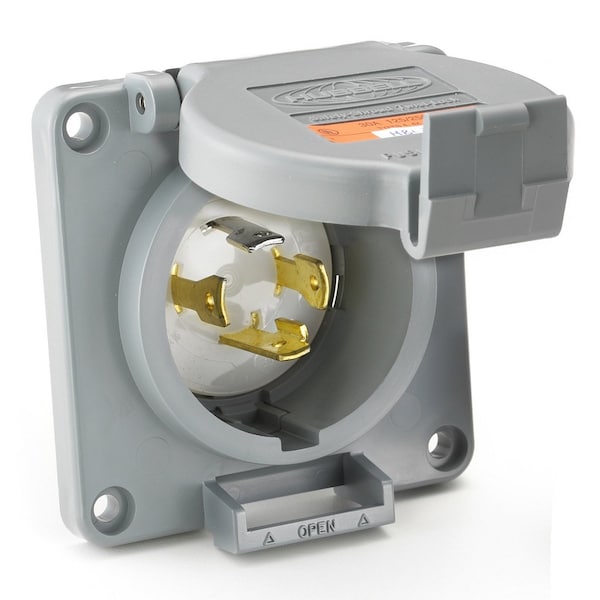

Locking Devices, Twist-Lock®, Watertight Safety Shroud, Flanged Inlet, 30A 3-Phase Delta 250V AC, L15-30P, Screw Terminal, Reversed Service
| Material | Thermoplastic |
|---|---|
| Color | Gray |
| Standards | UL 498 |
| Contact Material | Brass |
| Dielectric Strength | 2,000 V |
| IP Rating | IP66 |
| Flammability | UL 94 V0 |
| Retainer Material | Clear Polycarbonate |
| NEMA Rating | 4, 4X, 12 |
| Cord Size | 16 to 8 AWG |
| Housing Material | PBT |
| Operating Temp. | -40 to 75°C |
| Width | 3-3/4 in |
| Height | 2.91 in |
| Application | Industrial |
| Length | 3-3/4 in |
| Industry Standard(s) | UL Listed, CSA Certified To Type 4, 4X And Type 12 |
| Display Size | Standard Sized Product |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Dimensions | 3-3/4 in x 3-3/4 in x 2.91 in |
| Current Rating | 30 A |
| Item Type | 30A Watertight Flanged Inlet |
| Material - Mounting Hardware | Screw Mounting |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Current / Amperage Rating | 30 A |
| Number Of Poles | 3-Pole |
| Number Of Wires | 4-Wire |
| Horsepower - Maximum | 7.5 |
| Type | Flanged Inlet |
| Amperage Rating | 30 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Phase | Three Phase |
| Connectivity | Screw Terminals |
| Voltage Rating Description | 3 Phase 250 VAC |
| Wire Size | #16 AWG to #8 AWG |
| Package Quantity | 1 |
