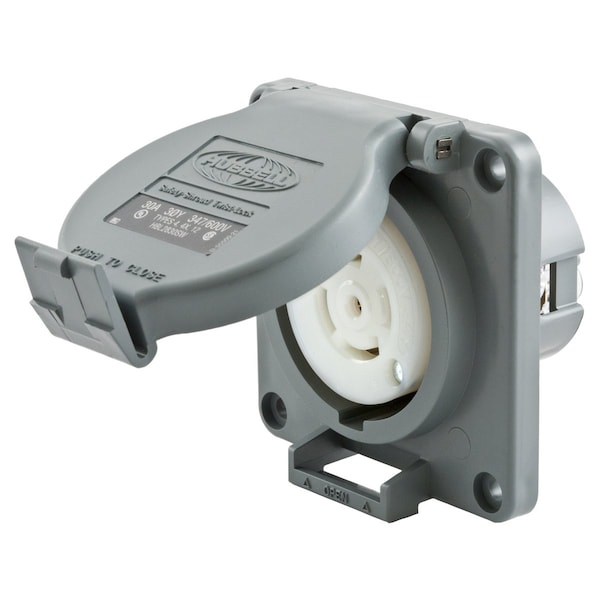

Dispositivos de bloqueo, Twist-Lock®, protección de seguridad a prueba de agua, receptáculo, 30A 3 fases Wye 347/600V AC, 4 polos 5 cables de conexión a tierra, L23-30R, terminal de tornillo.
| Standards | UL 498 |
|---|---|
| Color | Gray |
| Material | Valoxâ„¢ |
| Cord Size | 16 to 8 AWG |
| Dielectric Strength | 2,000 V |
| Retainer Material | Clear Polycarbonate |
| IP Rating | IP20 |
| Housing Material | Gray RPT |
| Flammability | UL 94 V2 |
| Contact Material | Brass |
| Screw Material | Steel |
| Operating Temp. | -40 to 75°C |
| Material - Mounting Hardware | Screw Mounting |
| Application | Heavy Duty Industrial Shrouded Watertight |
| Environmental Conditions | Watertight |
| Amperage Rating | 30 A |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Phase | 3 Phase WYE |
| Item Type | 30A Watertight Safety-Shroud |
| Dimensions | 3-3/4 in x 3-3/4 in x 2.9 in |
| Industry Standard(s) | UL Listed, CSA Certified To Type 4, 4X And Type 12 |
| Type | Receptacle |
| Voltage Rating Description | 3-Phase Y 347/600 VAC |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Current Rating | 30 A |
| Wire Size | #16 AWG to #8 AWG |
| Current / Amperage Rating | 30 A |
| Nema Rating | L23-30R |
| Number Of Poles | 4-Pole |
| Height | 2.9 in |
| Number Of Wires | 5-Wire |
| Connectivity | Screw Terminals |
| Display Size | Standard Sized Product |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Length | 3-3/4 in |
| Width | 3-3/4 in |
| Package Quantity | 1 |
