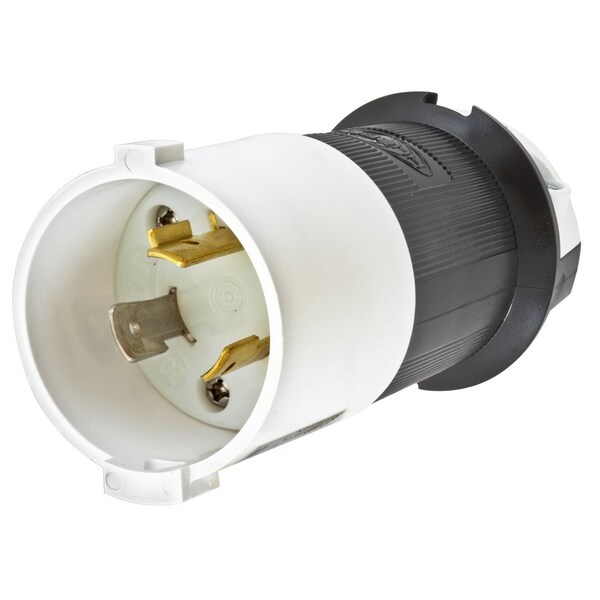

El conector con bloqueo L7-20P de Hubbell Wiring Device-Kellems es ideal para conexiones seguras en aplicaciones monofásicas de 277V AC. Con 20 A de capacidad y terminales de tornillo fáciles de usar, este conector garantiza un rendimiento confiable en cualquier entorno.
| Item | Locking Plug |
|---|---|
| NEMA Plug Configuration | L7-20P |
| Current Rating | 20 A |
| Voltage Rating | 277V AC |
| Phase | Single |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Number of Blades | 3 |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Shrouded | Yes |
| Housing Color | Black, White |
| For Maximum Cable Diameter | 0.93 in |
| For Minimum Cable Diameter | 0.36 in |
| IP Rating | IP20 |
| Standards | Certified to CSA C22.2 No.42, Fed.Spec. W-C-596, Listed to UL 498 |
| Resistance Properties | Moisture Resistance |
| Material | Nylon |
| Cord Size | .325"-.930" |
| Application | Extra Heavy Duty Industrial |
| Flammability | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Blade Material | Brass |
| Temp. Rise | Max 30C Temp. Rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Length | 2.26 in |
| Wire Size | #16 AWG to #8 AWG |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Cable Range | 0.36 to 0.93 in |
| Amperage Rating | 20 A |
| Display Size | Standard Sized |
| Current / Amperage Rating | 20 A |
| Material - Mounting Hardware | Cord Mounted |
| Horsepower - Maximum | 2 |
| Cord Type | All Listed Portables |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Width | 2.04 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Height | 4.21 in |
| Cord Range | 0.360"-0.930" |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 2.26 in x 2.04 in x 4.21 in |
| Package Quantity | 1 |
