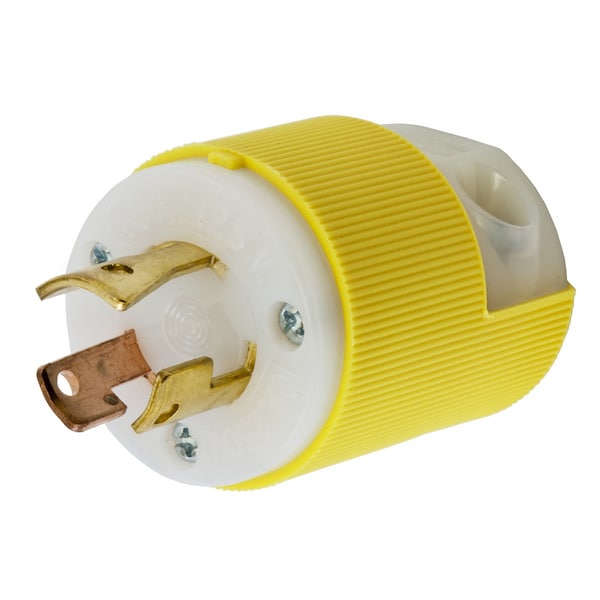

Conector de bloqueo no-NEMA de 10A y 250/125V AC para uso en instalaciones monofásicas. Cuenta con 3 polos y terminales de tornillo para una conexión segura y confiable.
| Item | Locking Plug |
|---|---|
| NEMA Plug Configuration | Non-NEMA |
| Current Rating | 10 A |
| Voltage Rating | 250/125V AC |
| Phase | Single |
| Number of Poles | 3 |
| Number of Wires | 3 |
| Number of Blades | 3 |
| Wire Connection Type | Screw Terminals |
| Grounding | Non-Grounded |
| Housing Color | Yellow |
| IP Rating | IP20 |
| Standards | Certified to CSA C22.2 No.42, Fed.Spec.W-C-596 |
| Material | Nylon |
| Cord Size | .230"-.720" (5.8-18.3) |
| Application | Extra Heavy Duty Industrial |
| Wire Size | #18 AWG to #10 AWG |
| Temp. Rise | Max 30C Temp. Rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Length | 1.53 in |
| Flammability | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Blade Material | Brass |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Cord Range | 0.230"-0.720" |
| Dielectric Strength | Withstands 2,000V minimum |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec.W-C-596 |
| Cord Type | All Listed Portables |
| Dimensions | 1.53 in x 1.53 in x 1.97 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Performance | Electrical-Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Mechanical - Terminal Accommodation - #18 - #10 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) |
| Listings | Fed.Spec. W-C-596 CSA C22.2 No.42 |
| Display Size | Standard Sized |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Amperage Rating | 10A |
| Height | 1.97 in |
| Width | 1.53 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Material - Mounting Hardware | Cord Mounted |
| Package Quantity | 1 |
