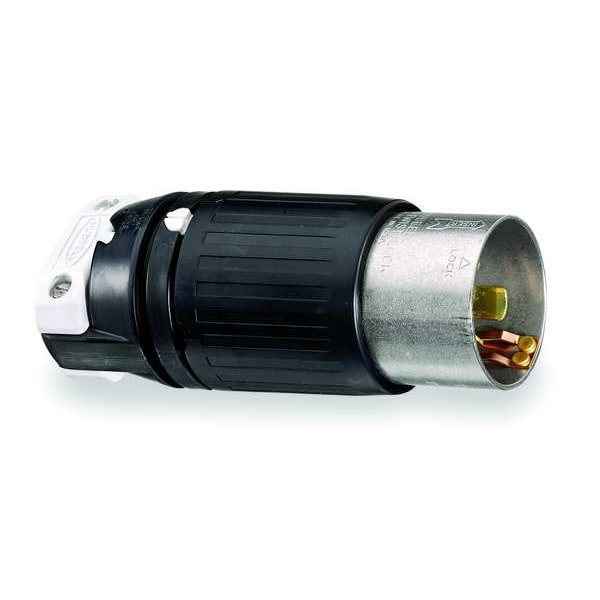

Locking Plug, Non-NEMA, 50 A, 250/600V AC, Single Phase, 3 Pole, Screw Terminals
| Item | Locking Plug |
|---|---|
| NEMA Plug Configuration | Non-NEMA |
| Current Rating | 50 A |
| Voltage Rating | 250/600V AC |
| Phase | Single |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Number of Blades | 4 |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Connection Orientation | Straight |
| Shrouded | Yes |
| Grounding | Grounded |
| Housing Color | Black, White |
| For Maximum Cable Diameter | 1-1/4 in |
| For Minimum Cable Diameter | 0.83 in |
| IP Rating | IP20 |
| Standards | CSA Certified C22.2 No. 42, UL 498 |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Cord Size | 3/4 to 1-1/8 in |
| Grade | Industrial |
| Material | Super Tough Nylon |
| Corrosion Resistant | No |
| Application | Extra Heavy Duty Industrial |
| Outside Diameter | 2.563 in |
| Blade Material | Brass |
| UL 94 Flammability Rating | HB |
| Maximum Wire Size | 4 AWG |
| Minimum Operating Temperature | -40 deg C |
| Overall Length | 2.56 in |
| Polarized | Yes |
| For Environment | Dry |
| Minimum Wire Size | 8 AWG |
| Maximum Operating Temperature | 75 deg C |
| Body Length | 2.56 in |
| Market | Industrial |
| For Location | Indoor |
| Housing Material | Nylon |
| Wire Size | #8 AWG to #4 AWG |
| Flammability | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Temp. Rise | Max 30C Temp. Rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Operating Temp. | Maximum continuous 75A deg C; minimum –40A deg C (w/o impact) |
| Length | 2.56 in |
| Dielectric Strength | Withstands 2,000V minimum |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Height | 6.37 in |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better Environmental - Operating Temperatures - Maximum continuous 75°C minimum to40°C (w/o impact) Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only |
| Current / Amperage Rating | 50 A |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Listed to UL 498 |
| Cable Range | 0.83 to 1-1/4 in |
| Dimensions | 2.56 in x 2.56 in x 6.37 in |
| Display Size | Standard Sized |
| Material - Mounting Hardware | Cord Mounted |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Width | 2.56 in |
| Cord Range | .830"-1.250" |
| Cord Type | All Listed Portables |
| Amperage Rating | 50 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Antimicrobial | No |
| Voltage - Plugs and Receptacles | 600V AC/250V DC |
| Grade - Plugs and Receptacles | Industrial |
| Amps | 50 |
| Color - Plugs and Receptacles | Black, White |
| Item - Plugs and Receptacles | Locking Plug |
| NEMA Plug Configuration - Plugs and Receptacles | 50A, Non-NEMA |
| Amps - Plugs and Receptacles | 50 |
| Voltage | 600VAC/250VDC |
| Shrouded / Non-Shrouded | Shrouded |
| NEMA Configuration | Non-NEMA, 4 Blade |
| Color | Black, White |
| Package Quantity | 1 |
