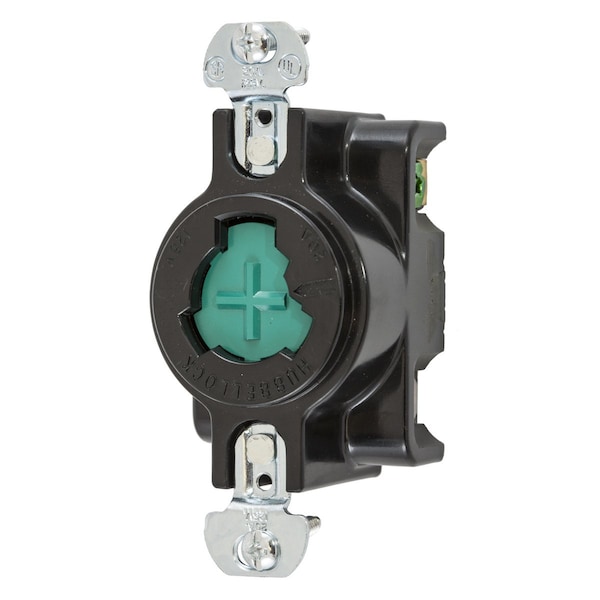

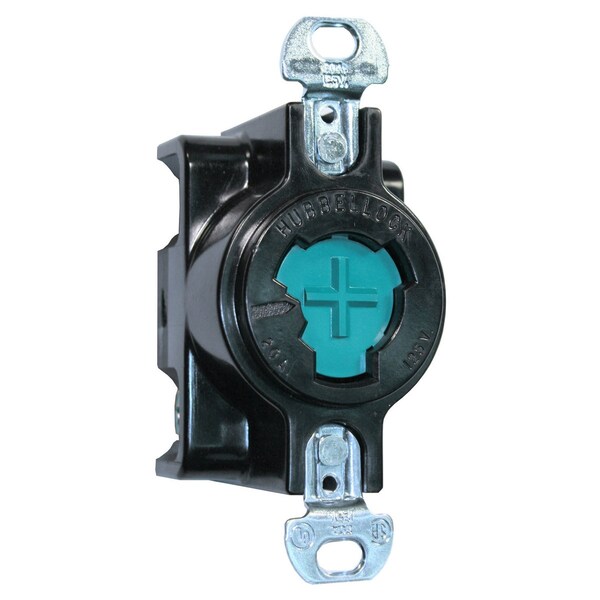

Este receptáculo bloqueable de 20 A y 125V AC con 2 polos de alta calidad es perfecto para aplicaciones industriales y comerciales. Cuenta con una construcción duradera y segura que garantiza un rendimiento confiable.
| Item | Locking Receptacle |
|---|---|
| Current Rating | 20 A |
| Voltage Rating | 125V AC |
| Number of Poles | 2 |
| Housing Color | Black |
| Cover Type | No Cover |
| IP Rating | IP30 |
| Standards | Certified for current interrupting at full rated current |
| Special Features | Molded In or Stamped On |
| Material | zinc plated Steel |
| Wiring Style | Standard |
| Flammability | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Terminal Designations | Terminals identified in accordance with UL 498 |
| Spring Material | Bronze |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Base Material | Black Thermoset |
| Lock Type | Hubbellock |
| Wire Size | #12AWG |
| Package Quantity | 1 |
