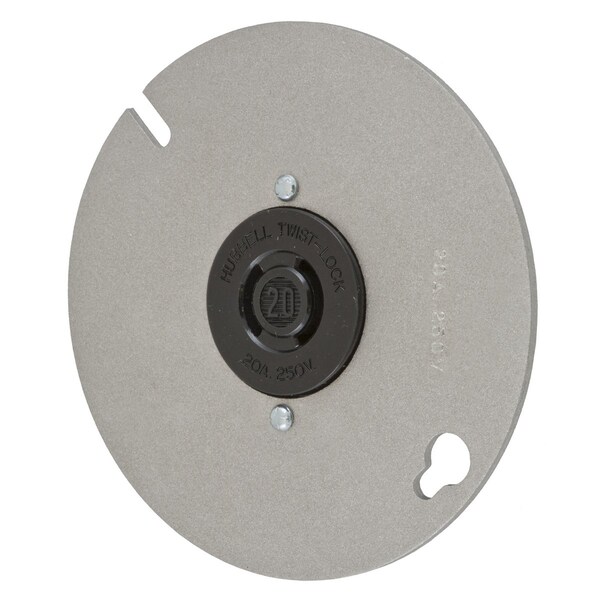

Este receptáculo con bloqueo de 20 A y 250V AC es ideal para aplicaciones monofásicas. Cuenta con 2 polos y terminales de tornillo para una instalación segura y confiable.
| Item | Locking Receptacle |
|---|---|
| NEMA Receptacle Configuration | L2-20R |
| Current Rating | 20 A |
| Voltage Rating | 250V AC |
| Phase | Single |
| Number of Poles | 2 |
| Number of Wires | 2 |
| Wire Connection Type | Screw Terminals |
| Housing Color | Black |
| Cover Type | No Cover |
| IP Rating | Not Rated |
| Standards | Fed.Spec.W-C-596 |
| Special Features | Molded In or Stamped On |
| Material | Steel-zinc-plated |
| Wiring Style | Standard |
| Application | Heavy Duty Industrial |
| Operating Temp. | Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact) |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Lock Type | Twist-lock |
| Wire Size | #16 AWG - #8 AWG solid or stranded copper wire only. |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Flammability | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Base Material | Black Thermoset |
| Spring Material | .031" Brass |
| Length | 4.12 in |
| Material - Mounting Hardware | Screw Mounting |
| Height | 1.29 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Display Size | Standard Sized Product |
| Horsepower - Maximum | 2 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Dielectric Strength | Withstands 2,000V minimum |
| Industry Standard(s) | Fed.Spec.W-C-596 |
| Dimensions | 4.12 in x 1.29 in x 1.29 in |
| Width | 1.29 in |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Package Quantity | 1 |
