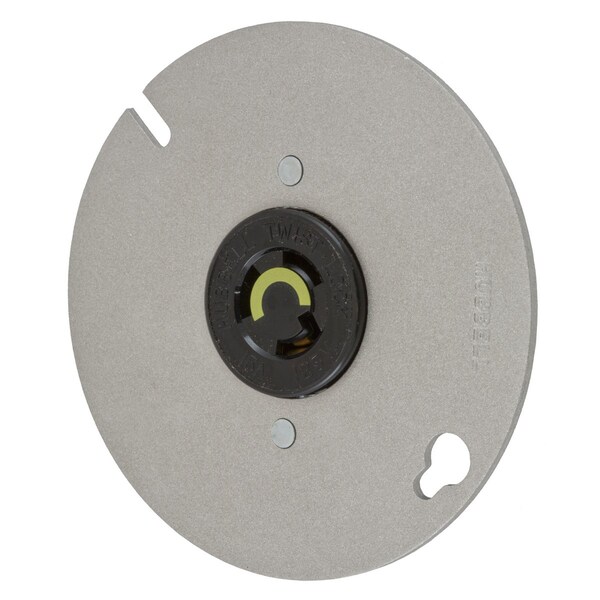

Este receptáculo con bloqueo de la marca Hubbell Wiring Device-Kellems es ideal para aplicaciones monofásicas que requieren un flujo constante de corriente. Con terminales de tornillo para una instalación segura y confiable.
| Item | Locking Receptacle |
|---|---|
| NEMA Receptacle Configuration | L5-15R |
| Current Rating | 15 A |
| Voltage Rating | 125V AC |
| Phase | Single |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wire Connection Type | Screw Terminals |
| Grounding | Grounded |
| Housing Color | Black |
| Cover Type | No Cover |
| Standards | Certified to CSA C22.2 No.42 Fed. Spec. W-C-596 Listed to UL 498 |
| Wiring Style | Standard |
| Material | Steel-zinc-plated |
| Special Features | Molded In or Stamped On |
| Application | Heavy Duty Industrial |
| Base Material | Black Rynite |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Lock Type | Twist-lock |
| Flammability | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Spring Material | .031" Brass |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Wire Size | 15A #14 AWG |
| Width | 1.42 in |
| Dielectric Strength | Withstands 2,000V minimum |
| Item Type | 15A Single Receptacle Mounted to 4" Round Box Cover |
| Height | 1.27 in |
| Dimensions | 1.42 in x 1.42 in x 1.27 in |
| Length | 1.42 in |
| Performance | Electrical-Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Mechanical - Terminal Accommodation - #18 - #10 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Amperage Rating | 15 A |
| Listings | UL 498 Fed.Spec. W-C-596 CSA C22.2 No.42 |
| Horsepower - Maximum | 0.5 |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed. Spec. W-C-596 Listed to UL 498 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Material - Mounting Hardware | Screw Mounting |
| Display Size | Standard Sized Product |
| Package Quantity | 1 |
