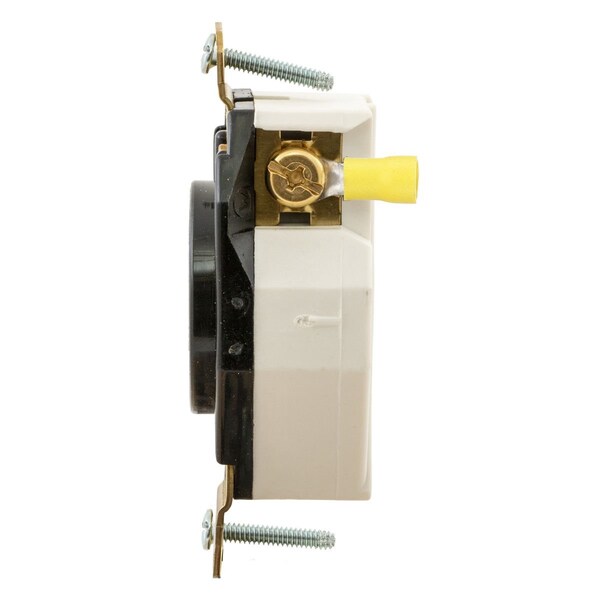

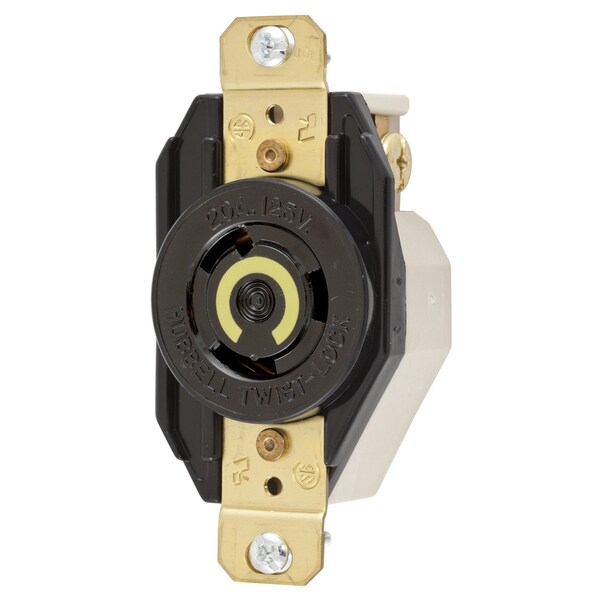

Este receptáculo con bloqueo de 20 A y 125V AC es ideal para aplicaciones industriales y comerciales, cuenta con 2 polos para mayor seguridad. Marca Hubbell Wiring Device-Kellems.
| Item | Locking Receptacle |
|---|---|
| NEMA Receptacle Configuration | L5-20R |
| Current Rating | 20 A |
| Voltage Rating | 125V AC |
| Number of Poles | 2 |
| Housing Color | Black |
| Cover Type | No Cover |
| IP Rating | IP20 |
| Standards | Certified for current interruption at full rated current; FED SPEC UL/CSA |
| Special Features | Molded In or Stamped On |
| Material | zinc plated Steel |
| Wiring Style | Standard |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Lock Type | Twist-lock |
| Flammability | VO or better |
| Operating Temp. | Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact) |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Base Material | Nylon Polyester |
| Wire Size | #14 to #8 AWG Copper Only |
| Spring Material | .031" Brass |
| Package Quantity | 1 |
