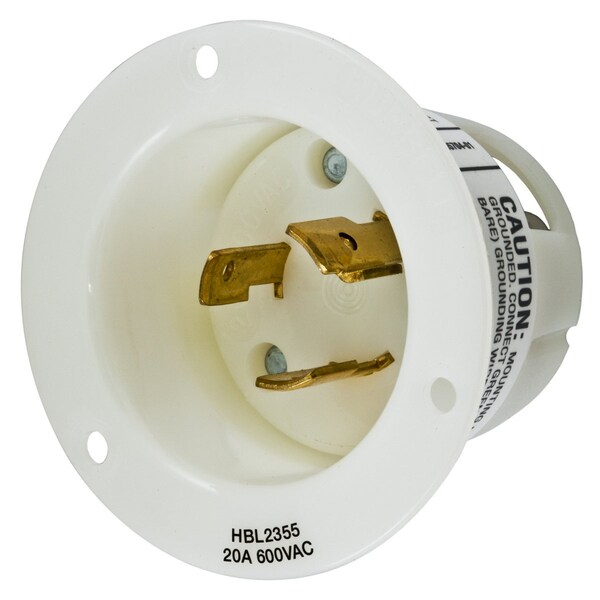

Obtenga un rendimiento confiable con el receptáculo con bloqueo L9-20P de Hubbell Wiring Device-Kellems. Este receptáculo de 20 A y 600V CA es ideal para aplicaciones monofásicas, con 2 polos y terminales de tornillo para una instalación segura y sencilla.
| Item | Locking Receptacle |
|---|---|
| NEMA Receptacle Configuration | L9-20P |
| Current Rating | 20 A |
| Voltage Rating | 600V AC |
| Phase | Single |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wire Connection Type | Screw Terminals |
| Grounding | Grounded |
| Housing Color | White |
| Cover Type | No Cover |
| IP Rating | IP20 |
| Standards | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Material | Nickel-plated Brass Round head screws |
| Flange Material | Natural White Nylon |
| Special Features | Molded In or Stamped On |
| Wiring Style | Standard |
| Application | Extra Heavy Duty Industrial |
| Lock Type | Twist-lock |
| Flammability | HB or better per UL 94 or CSA 22.2 No. 0.6 |
| Operating Temp. | Maximum Continuous 75A Deg C.Minimum -40A Deg C (w/o impact) |
| Wire Size | #12 AWG; #16 AWG - #8 AWG solid or stranded copper wire only. |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Display Size | Standard Sized Product |
| Material - Mounting Hardware | Screw Mounting |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Cord Grip Accomodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Dimensions | 2.88 in x 2.88 in x 2.09 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Width | 2.88 in |
| Amperage Rating | 20 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Insulation | Insulated Body |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Height | 2.09 in |
| Length | 2.88 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Package Quantity | 1 |
