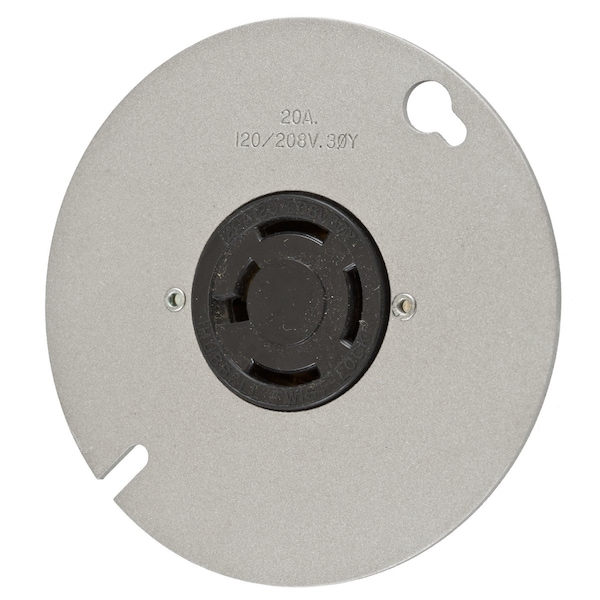

Este receptáculo de bloqueo no-NEMA de 20 A y 120/208V CA es ideal para aplicaciones de tres fases. Cuenta con 4 polos y terminales de tornillo para una instalación segura y confiable.
| Item | Locking Receptacle |
|---|---|
| NEMA Receptacle Configuration | Non-NEMA |
| Current Rating | 20 A |
| Voltage Rating | 120/208V AC |
| Phase | Three |
| Number of Poles | 4 |
| Number of Wires | 4 |
| Wire Connection Type | Screw Terminals |
| Housing Color | Black |
| Cover Type | No Cover |
| IP Rating | IP20 |
| Standards | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Wiring Style | Standard |
| Material | Steel-zinc-plated |
| Special Features | Molded In or Stamped On |
| Application | Heavy Duty Industrial |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Lock Type | Twist-lock |
| Operating Temp. | Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact) |
| Base Material | Nylon Polyester |
| Flammability | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Wire Size | #12 AWG |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Spring Material | .040" Brass |
| Width | 4.14 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Display Size | Standard Sized Product |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Dielectric Strength | Withstands 2,000V minimum |
| Length | 4.14 in |
| Height | 1.28 in |
| Material - Mounting Hardware | Screw Mounting |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Amperage Rating | 20 A |
| Dimensions | 4.14 in x 4.14 in x 1.28 in |
| Package Quantity | 1 |
