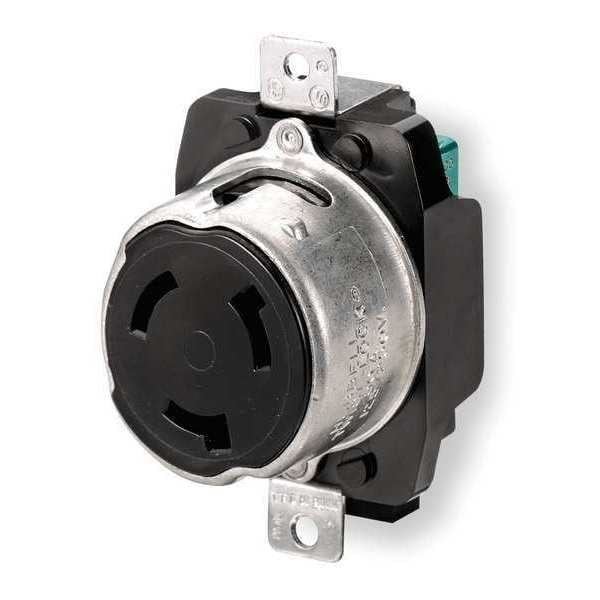

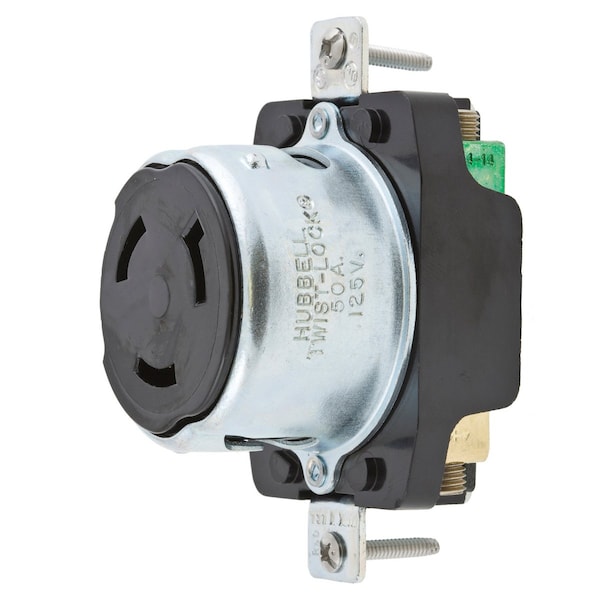

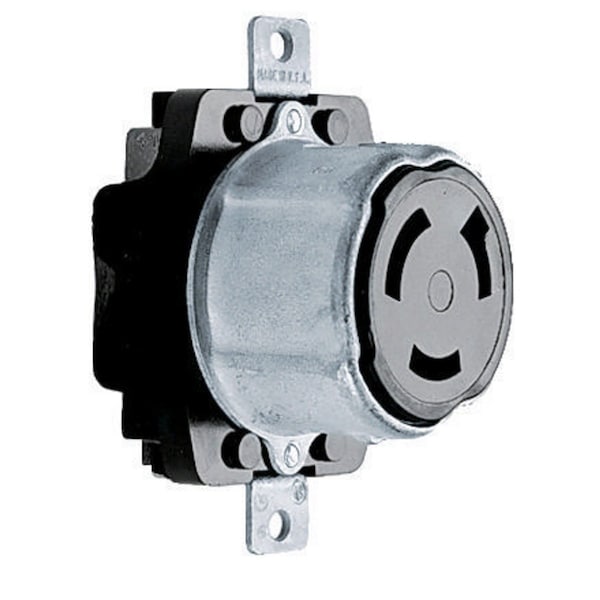

Este receptáculo con bloqueo de 50 A y 125V CA es ideal para aplicaciones monofásicas. Cuenta con 2 polos, montaje al ras y terminales de tornillo para una instalación segura y confiable.
| Item | Locking Receptacle |
|---|---|
| NEMA Receptacle Configuration | Non-NEMA |
| Current Rating | 50 A |
| Voltage Rating | 125V AC |
| Phase | Single |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wire Connection Type | Screw Terminals |
| Shrouded | No |
| Grounding | Grounded |
| Housing Color | Yellow |
| Mount Type | Flush |
| Cover Type | No Cover |
| IP Rating | IP20 |
| NEMA Enclosure Rating | Not Rated |
| Standards | UL Listed |
| Resistance Properties | Moisture Resistant |
| Flange Type | Non-Flanged |
| Wiring Style | Standard |
| Special Features | With Cover |
| Grade | Marine |
| Mounting Type | Flush Mount |
| Material | Thermoset |
| Shrouded / Non-Shrouded | Non-Shrouded |
| AFCI | No |
| Flange Diameter | Not Applicable |
| Maximum Wire Size | 6 AWG |
| Polarized | Yes |
| For Environment | Dry |
| Connection Orientation | Straight |
| Flange Width | Not Applicable |
| Number of Gangs | 1 |
| Flange Height | Not Applicable |
| Housing Material | Thermoplastic |
| For Location | Indoor |
| Lock Type | Receptacles |
| Color | Black |
| Amps | 50 |
| Voltage | 125V AC |
| NEMA Configuration | Non-NEMA |
| NEMA Rating | 4x, 12 |
| Package Quantity | 1 |
