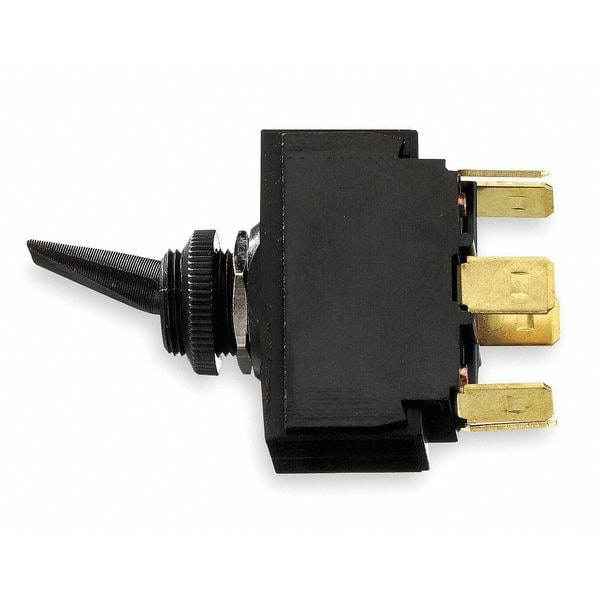

Interruptor de palanca marino, DPDT, 6 conexiones, Encendido/Apagado/Encendido, 15A @ 12VDC
| Switch Function | On, On/Off |
|---|---|
| Contact Form | DPDT |
| Actuator Style | Flattened Lever |
| Amps | 15A @ 12VDC |
| Number of Connections | 6 |
| Stem Length | 0.37 in |
| Terminals | Quick Connect, 1/4 in Solder Lug Tab |
| Actuator Length | 0.67 in |
| Stem Dia. and Thread Size | 0.47"-32 UNC-2A, 0.480 in dia |
| Recommended Use | Dual Fuel Tanks, Navigation Lights, Wipers |
| Actuator Color | Black |
| Item | Marine Toggle Switch |
| Stem Color | Black |
| Mounting Hole | 1/2 in dia |
| Operating Temp. Range | -10 to 105 deg F |
| DC Contact Rating | 15 A @ 12 V |
| Includes | Lock Nuts |
| IP Rating | Not Rated |
| AC Contact Rating | Not Applicable |
| Carton Quantity | 10 |
| Product Type | Toggle Switch |
| Typical Applications | Navigation lights, wipers, dual fuel tanks |
| DC Product Type | Panel Mount Toggle Switch |
| Description | Double Pole, Double Throw On/On |
| Series | MARINE |
| Color | Black |
| Terminal Connection Type | Spade Terminals |
| Number of Poles | 2 |
| Operator Illumination Style | Non-Illuminated |
| Overall Height | 3/4 in |
| Number of Positions | 3 |
| Overall Depth | 2.35 in |
| Mounting Hole Diameter | 0.48 in |
| Operating Temperature - Maximum | 105 deg F |
| Switch Function Configuration | On, On/Off |
| Resistance Properties | Corrosion Resistant |
| Stem Diameter | 0.48 in |
| Stem Thread Size | 15/32-32 UNC-2A |
| Features | Black |
| Manufacturer Warranty Length | 1 yr |
| Base Type | Flat |
| Overall Width | 1.37 in |
| Operating Temperature - Minimum | -10 deg F |
| NEMA Enclosure Rating | No Enclosure |
| Package Quantity | 1 |
