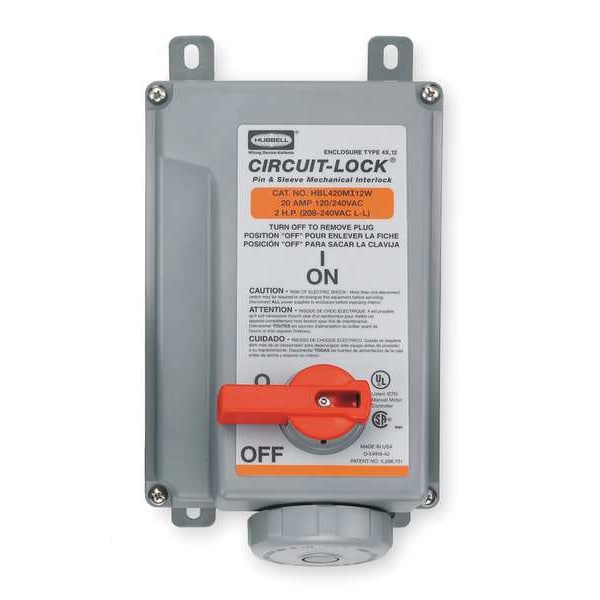

Interbloqueo mecánico, pin y manga de 20A para dispositivos de cableado Hubbell.
| Item | Mechanical Interlock Device |
|---|---|
| Type | Unfused, Pin And Sleeve |
| Voltage | 120/240V AC |
| Amps | 20 |
| Hub | 1 in |
| Number of Poles | 3 |
| Phase | Single |
| Viewing Window | No |
| Number of Wires | 4 |
| Material | Thermoplastic |
| Fused / Nonfused | Nonfused |
| HP | 2 hp |
| Includes | Mounting Feet |
| Accepts Plug Number | 6C152 |
| Use With | 6C152 |
| Standards | UL Listed |
| Color | Orange |
| Compatible Plug Manufacturer Part Number | 6C152 |
| Reverse Service | No |
| Minimum Operating Temperature | -40 Degrees C |
| Hub Diameter | 1 in |
| Circuit Breaker Amp Rating | 20 A |
| Overall Width | 7-3/4 in |
| Fuse Type | Not Applicable |
| Housing Color | Orange |
| UL 94 Flammability Rating | 5VA, V-0 |
| For Location | Indoor, Outdoor |
| Grounding | Grounded |
| Fuse Protection | Non-Fused |
| Electrical Connection Type | Pin and Sleeve |
| Locking Handle | Yes |
| NEMA Enclosure Rating | Not Rated |
| Voltage Rating | 120/240V AC |
| Includes Mounting Hardware | Yes |
| Circuit Breaker | No |
| Maximum Wire Size | 10 AWG |
| Current Rating | 20 A |
| Minimum Wire Size | 14 AWG |
| Resistance Properties | Watertight |
| Overall Height | 10.12 in |
| Maximum Operating Temperature | 75 Degrees C |
| Circuit Breaker Type | Not Applicable |
| IP Rating | IP67 |
| Horsepower Rating | 2 HP |
| Housing Material | Thermoplastic |
| Wire Size | #14 AWG to #10 AWG |
| Industry Standard(s) | UL Listed |
| Nema Rating | Non-NEMA |
| Item Type | Mechanically Interlocked Single |
| Wattage | 5000 |
| Application | High Ampacity Watertight Connections |
| Voltage Rating Description | 120/240 VAC |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage Electrical - Dielectric Voltage - Withstands 3,000V AC Min Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability - UL94-5VA and V-0 Classification Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Outdoor - 4X (Watertight, Washdown) Indoor - 12 (Dust-tight, Falling Dirt and Noncorrosive Liquids). Environmental - Operating Temperature - Max. Continuous +75°C Min. Continuous -40°C Mechanical - Impact Resistance - In accordance with UL 746C Mechanical - Mounting - External adjustable feet Mechanical - Product Identification - Identification and ratings are part of the external label and molded into the receptacle mount Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions |
| Environmental Conditions | Watertight |
| Amperage Rating | 20 A |
| Current / Amperage Rating | 20 A |
| Connectivity | Pressure Terminal Screws |
| Material - Mounting Hardware | Screw Mounting |
| Style | Standard Service |
| Series | Unfused Circuit-Lock |
| Display Size | Standard Sized Product |
| Package Quantity | 1 |
