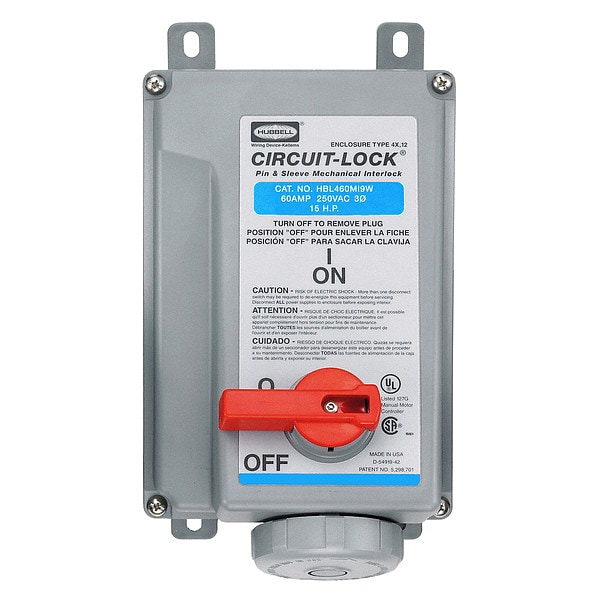

Interbloqueo mecánico sin fusibles de 60A y 15 HP, diseñado para garantizar la seguridad en la conexión de equipos eléctricos.
| Item | Mechanical Interlock Device |
|---|---|
| Type | Unfused, Pin And Sleeve |
| Voltage | 250V AC |
| Amps | 60 |
| Hub | 1-1/4 in |
| Number of Poles | 3 |
| Phase | Three |
| Number of Wires | 4 |
| Viewing Window | No |
| Material | Thermoplastic |
| Fused / Nonfused | Nonfused |
| Use With | 5Z914 |
| HP | 15 HP |
| Includes | Mounting Feet |
| Accepts Plug Number | 5Z914 |
| Color | Blue |
| Standards | UL Listed |
| Hub Diameter | 1.3 in |
| Compatible Plug Manufacturer Part Number | 5Z914 |
| Overall Height | 10.12 in |
| Resistance Properties | Watertight |
| Fuse Protection | Non-Fused |
| Circuit Breaker Type | Not Applicable |
| Minimum Operating Temperature | -40 Degrees C |
| Circuit Breaker | No |
| Grounding | Grounded |
| Housing Material | Thermoplastic |
| Circuit Breaker Amp Rating | 60 A |
| Horsepower Rating | 15 HP |
| For Location | Indoor, Outdoor |
| Electrical Connection Type | Pin and Sleeve |
| Voltage Rating | 240V AC |
| Housing Color | Blue |
| Includes Mounting Hardware | Yes |
| Current Rating | 60 A |
| Maximum Operating Temperature | 75 Degrees C |
| UL 94 Flammability Rating | 5VA, V-0 |
| NEMA Enclosure Rating | Not Rated |
| Minimum Wire Size | 8 AWG |
| Fuse Type | Not Applicable |
| IP Rating | IP67 |
| Overall Width | 7-3/4 in |
| Locking Handle | Yes |
| Maximum Wire Size | 2 AWG |
| Reverse Service | No |
| Service Style | Standard |
| Terminal Identification | Terminals identified in accordance with North American and International conventions. |
| Conduit Hub | Watertight, Zinc |
| Max Working Voltage | 600V AC RMS |
| Certification | UL Listed, CSA Certified |
| Ingress Protection | IP67 Suitability |
| Shaft | VALOX |
| Assembly Screws | Stainless Steel (300 series) |
| Enclosure Inserts | Brass |
| Certifications | UL Listed, CSA Certified. |
| Enclosure Hinge Pins | Nickel Plated Brass |
| Moisture Resistance | Outdoor: 4X (Watertight, Washdown) Indoor: Type 12 (Dusttight, Falling Dirt and Non-Corrosive Liquids). |
| Handle | Valox |
| Operating Temperatures | Maximum Continuous: 75° C; Minimum Continuous: -40° C with o impact. |
| Current Interrupting | Certified for current interrupting at full rated current. |
| Flammability | UL94-5VA and V-0 classification. |
| Shaft Seal | Neoprene |
| Mechanical Interlock Device Standard | IEC |
| Short Circuit Withstand | Suitable for use on a circuit capable of delivering not more than 10,000 RMS symmetrical amperes at the voltage rating of the receptacle. |
| Mechanical Interlock Items | Complete Unit |
| Dielectric Withstand Voltage | Withstands 3,000V AC |
| Amperage | 60 A |
| Endurance | Mechanical: 10,000 cycles, Electrical: 6,000 cycles. |
| UV Resistance | All materials are UV Stabilized. |
| Base | VALOX |
| Gaskets | Neoprene |
| Hinge Spring | Stainless Steel (300 series) |
| Terminal Accommodations | #2 To #10 AWG copper wire only |
| Impact Resistance | In accordance with UL746C |
| Poles and Wires | 3 Pole, 4 Wire |
| Wire Size | #8 AWG to #2 AWG |
| Current / Amperage Rating | 60 A |
| Voltage Rating Description | 3 Phase 240 VAC |
| Material - Mounting Hardware | Screw Mounting |
| Connectivity | Pressure Terminal Screws |
| Wattage | 15000 |
| Application | High Ampacity Watertight Connections |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage Electrical - Dielectric Voltage - Withstands 3,000V AC Min Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability - UL94-5VA and V-0 Classification Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Outdoor - 4X (Watertight, Washdown) Indoor - 12 (Dust-tight, Falling Dirt and Noncorrosive Liquids). Environmental - Operating Temperature - Max. Continuous +75°C Min. Continuous -40°C Mechanical - Impact Resistance - In accordance with UL 746C Mechanical - Mounting - External adjustable feet Mechanical - Product Identification - Identification and ratings are part of the external label and molded into the receptacle mount Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions |
| Environmental Conditions | Watertight |
| Amperage Rating | 60 A |
| Industry Standard(s) | UL Listed |
| Style | Standard Service |
| Nema Rating | Non-NEMA |
| Series | Unfused Circuit-Lock |
| Display Size | Standard Sized Product |
| Item Type | Mechanically Interlocked Single |
| Package Quantity | 1 |
