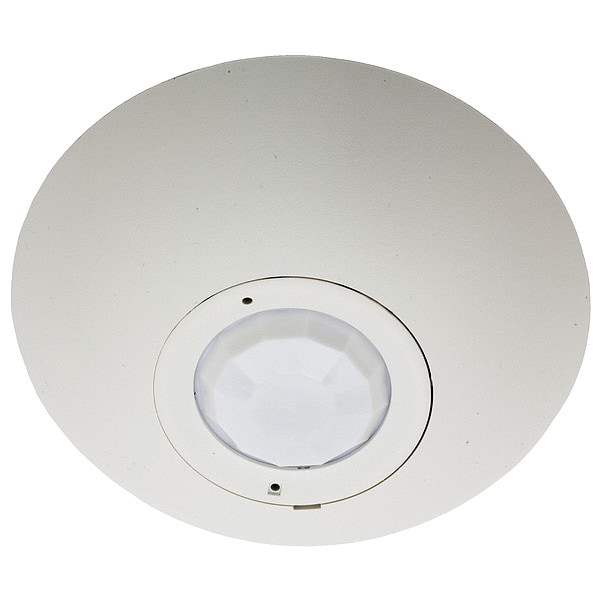

Sensor de ocupación, PIR, 1500 pies cuadrados, blanco.
| Use With - Motion Sensing and Dimming | Hubbell CU300A, CU300HD, CU300M |
|---|---|
| Item - Motion Sensing and Dimming | Occupancy Sensor |
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Sensing Technology | Passive Infrared |
| Installation Location - Motion Sensor | Ceiling |
| Coverage at Suggested Mounting Height | 1,500 sq ft |
| Operating Voltage - Motion Sensing and Dimming | 24 V DC |
| Color - Motion Sensing and Dimming | Office White |
| Time Delay Adjustment Method - Motion Sensor | Adaptive, Manual |
| Time Delay - Motion Sensor | 8 to 40 min |
| Suggested Mounting Height - Motion Sensor | 8 to 12 ft |
| Time Delay | Adaptive/Manual |
| Color | White |
| Sensor Type | Passive Infrared |
| Coverage Angle - Motion Sensor | 360 deg |
| Max. Capacity @ 277VAC | Dependent on Control Unit Rating |
| Viewing Angle | 360 deg |
| Voltage | 24VDC |
| Description/Special Features | Isolated Relay and Photocell |
| Coverage | 1,500 sq ft |
| Lighting Technology | LED |
| Standards | ASHRAE 90.1, cULus Listed, UL244A |
| Installation Type | Ceiling |
| Item | Occupancy Sensor |
| Max. Capacity @ 120VAC | Dependent on Control Unit Rating |
| For Use With | Mfr. No. CU300A/M/HD |
| Timer Range | 8 to 40 min. |
| Includes | Isolated Relay |
| Communication Method | Hard Wired |
| Wall Plate | Not Included |
| Minimum Operating Temperature | 32 deg F |
| Minimum Time Delay | 8 min |
| Sensor Operation | Occupancy, Photocell |
| Maximum Time Delay | 40 min |
| Compatible with Brand | Hubbell Wiring |
| Load Rating @ 120V AC | Dependent on Control Unit Rating |
| Overall Height | 1-1/2 in |
| Maximum Operating Temperature | 104 deg F |
| Maximum Mounting Height | 12 ft |
| Installation Location | Ceiling |
| Overall Width | Not Applicable |
| Coverage Angle | 360 deg |
| Load Rating @ 277V AC | Dependent on Control Unit Rating |
| Compatible with Manufacturer Model Number | CU300A, CU300HD, CU300M |
| Maximum Coverage Area | 1,500 sq ft |
| Power Relay Required | Yes |
| Minimum Mounting Height | 8 ft |
| Time Delay Adjustment Method | Adaptive |
| Overall Diameter | 4-1/2 in |
| Manufacturer Warranty | Limited Lifetime |
| Version | Unit with Relay and Photocell |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) with rate of change not exceeding 20°F (11°C) per hour |
| Product Type | Ceiling-sensors |
| Ambient Light | 1 to 1000 foot candles |
| Passive Infrared | Red LED |
| Sensitivity | 0 to 100% (Adaptive) |
| Control Unit, HD, Latching, Auto/Manual-ON | CU300HD |
| Ceiling sensor NEMA 4X enclosure | ACIPE |
| Ceiling mount raceway adapter | ACMRA |
| Isolated Relay | Normally open and normally closed terminals available |
| Device Color | Office White |
| Storage Temperature | -20°F to 150°F ; 0% to 95% non-condensing relative humidity |
| Power Requirements | 24V DC nominal, 33mA from Hubbell CU series control unit |
| Control Unit Auto-ON | CU300A |
| Control Unit Manual-ON | CU300M |
| Sensing Coverage | 1500 Square Feet |
| Package Quantity | 1 |
