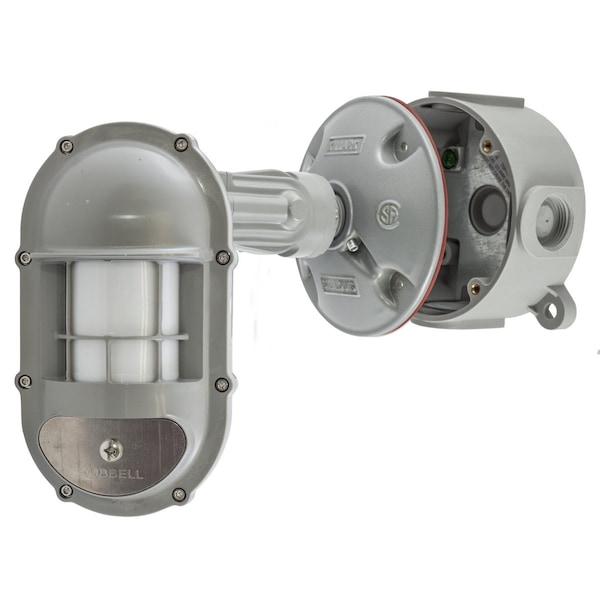

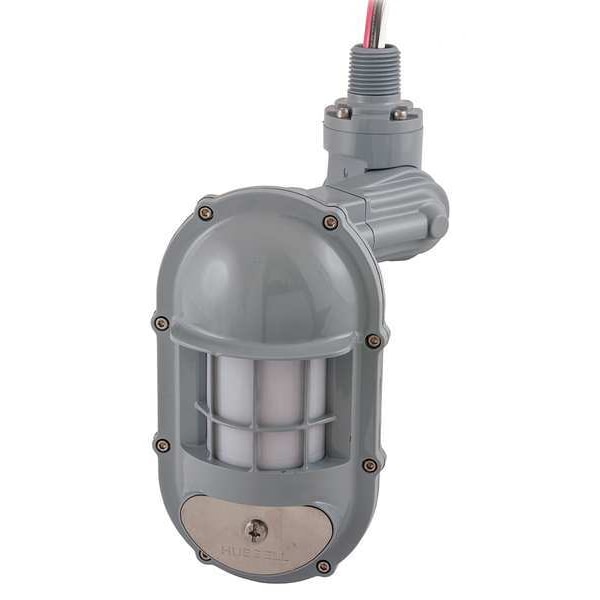

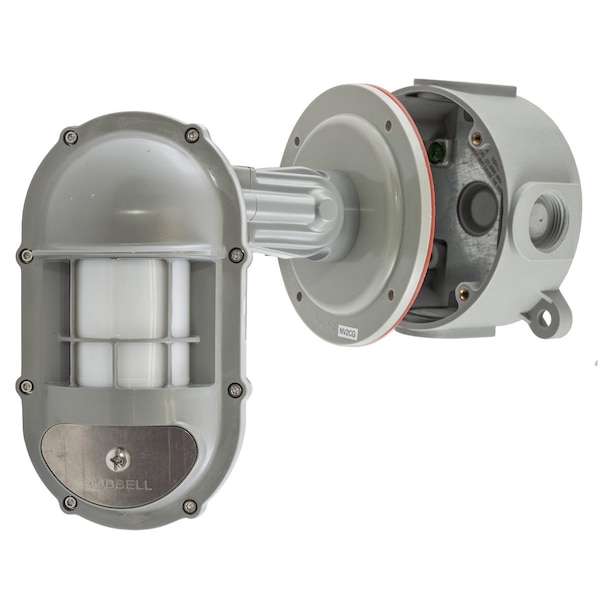

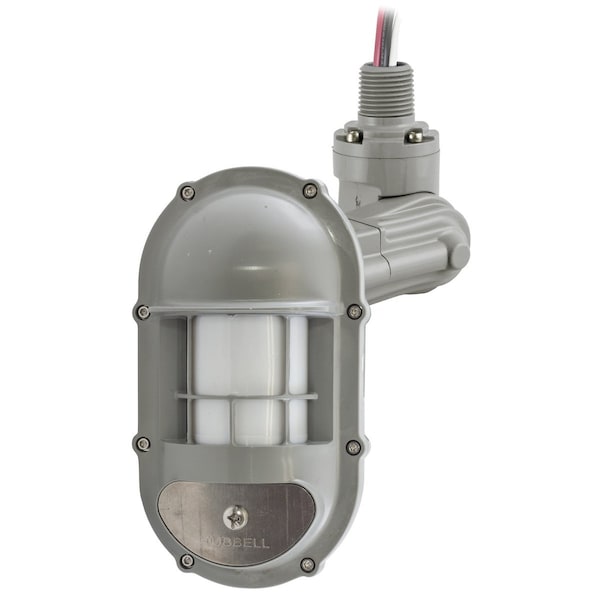

Sensor de ocupación, PIR, 1600 pies cuadrados, Gris.
| Use With - Motion Sensing and Dimming | Hubbell CU300A, CU300HD, CU300M, CU347A |
|---|---|
| Item - Motion Sensing and Dimming | Occupancy Sensor |
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Sensing Technology | Passive Infrared |
| Installation Location - Motion Sensor | Ceiling, Wall |
| Coverage at Suggested Mounting Height | 1,600 sq ft |
| Operating Voltage - Motion Sensing and Dimming | 24 V DC |
| Color - Motion Sensing and Dimming | Gray |
| Time Delay Adjustment Method - Motion Sensor | Adaptive |
| Time Delay - Motion Sensor | 4 to 30 min |
| Timer Range | 4 to 30 min. |
| Description/Special Features | Extreme Operating Temperature -40 Degrees to 149 Degrees F, Harsh Environment Sensor, NEMA 4X Protection Use Mfr. No. ACIPE |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Lighting Technology | LED |
| Color | Gray |
| Suggested Mounting Height - Motion Sensor | 8 to 12 ft |
| Item | Occupancy Sensor |
| Coverage Angle - Motion Sensor | 160 deg |
| Viewing Angle | 160 deg |
| Time Delay | Adaptive |
| Max. Capacity @ 277VAC | Dependent on Control Unit Rating |
| Coverage | 1,600 sq ft |
| For Use With | Mfr. No. CU300A, CU300M, CU300HD, CU347A |
| Sensor Type | Passive Infrared |
| Voltage | 24VDC |
| Max. Capacity @ 120VAC | Dependent on Control Unit Rating |
| Installation Type | Wall, Ceiling |
| Standards | UL Listed |
| Includes | Relay |
| Communication Method | Hard Wired |
| Type | Sensors |
| Wall Plate | Not Included |
| Application | Switching Relay |
| Minimum Mounting Height | 8 ft |
| Coverage Angle | 160 deg |
| Minimum Operating Temperature | 40 deg F |
| Load Rating @ 120V AC | Dependent on Control Unit Rating |
| Compatible with Series | CU300HD, Hubbell CU300A, CU300M, CU347A |
| Maximum Time Delay | 40 min |
| Minimum Time Delay | 8 min |
| Manufacturer Warranty | Limited Lifetime |
| Maximum Operating Temperature | 149 deg F |
| Sensor Operation | Occupancy, Photocell |
| Maximum Coverage Area | 1,600 sq ft |
| Time Delay Adjustment Method | Adaptive |
| Compatible with Brand | Hubbell Wiring |
| Load Rating @ 277V AC | Dependent on Control Unit Rating |
| Power Relay Required | Yes |
| Installation Location | Wall |
| Maximum Mounting Height | 12 ft |
| Compatible with Manufacturer Model Number | CU300A, CU300HD, CU300M, CU347A |
| Photocell | Yes |
| Indicator(s) Type | PIR= Red LED |
| Voltage Rating | 24 VDC |
| Series | Wall Mount |
| Package Quantity | 1 |
