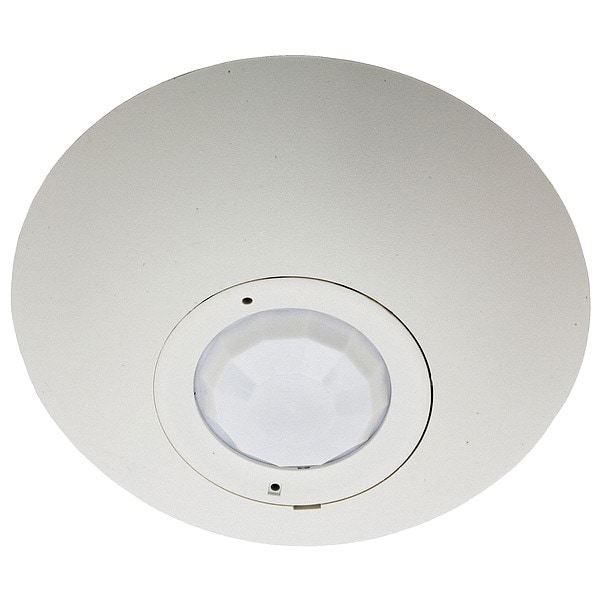

Sensor de ocupación, PIR/Ultrasonido, 1500 pies cuadrados, blanco.
| Use With - Motion Sensing and Dimming | Hubbell 167 |
|---|---|
| Item - Motion Sensing and Dimming | Occupancy Sensor |
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Sensing Technology | Passive Infrared |
| Installation Location - Motion Sensor | Ceiling |
| Coverage at Suggested Mounting Height | 1,500 sq ft |
| Operating Voltage - Motion Sensing and Dimming | 120 V AC, 277 V AC |
| Color - Motion Sensing and Dimming | Office White |
| Time Delay Adjustment Method - Motion Sensor | Adaptive |
| Time Delay - Motion Sensor | 4 to 30 min |
| Item | Occupancy Sensor |
| Watts @ 120V | 1,800 |
| Color | White |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Coverage | 1,500 sq ft |
| Time Delay | Adaptive |
| Timer Range | 4 to 30 min. |
| Max. Capacity @ 277VAC | 2700W (Incandescent) |
| Standards | ASHRAE 90.1, cULus Listed, UL244A |
| Suggested Mounting Height - Motion Sensor | 8 to 12 ft |
| Description/Special Features | Mounts Directly to 2-1/8 in Deep Octagon Box |
| Viewing Angle | 360 deg |
| Sensor Type | Passive Infrared/Ultrasonic |
| Watts @ 277V | 2,700 |
| Voltage | 120/277VAC |
| Installation Type | Ceiling |
| For Use With | Mfr. No. 167 |
| Lighting Technology | LED |
| Coverage Angle - Motion Sensor | 360 deg |
| Max. Capacity @ 120VAC | 1800W (Incandescent) |
| Includes | Mounting Hardware |
| Communication Method | Hard Wired |
| Wall Plate | Not Included |
| Manufacturer Warranty | Limited Lifetime |
| Minimum Mounting Height | 8 ft |
| Maximum Coverage Area | 1,500 sq ft |
| Maximum Operating Temperature | 104 deg F |
| Minimum Time Delay | 8 min |
| Installation Location | Ceiling |
| Overall Width | Not Applicable |
| Compatible with Manufacturer Model Number | Hubbell 167 |
| Load Rating @ 277V AC | 2,700W (Incandescent) |
| Load Rating @ 120V AC | 1,800W (Incandescent) |
| Time Delay Adjustment Method | Adaptive |
| Coverage Angle | 360 deg |
| Sensor Operation | Occupancy |
| Series | H-Moss |
| Overall Diameter | 4-1/2 in |
| Maximum Time Delay | 40 min |
| Maximum Mounting Height | 12 ft |
| Overall Height | 3.4 in |
| Minimum Operating Temperature | 32 deg F |
| Compatible with Brand | Hubbell Wiring |
| Power Supply | 120-277V AC, 50/60Hz Single Phase |
| Device Color | Office White |
| Mounting Height | 8 to 12 ft |
| Load Rating | 20A: 120 VAC Incandescent, 20A: 120 or 277 VAC Magnetic Ballast, 16A: 120 or 277 VAC Electronic Ballast, 1HP: 120 VAC Motor Load, 3/4HP: 277 VAC Motor Load |
| Passive Infrared | Red LED |
| Lens | Polyethylene |
| Ceiling mount raceway adapter | ACMRA |
| Storage Temperature | -20°F to 150°F ; 0% to 95% non-condensing relative humidity |
| Housing | Flame retardant UL 94 V-0 ABS |
| Ceiling mount wire guard | ACMG |
| Ambient Light | 1 to 1000 foot candles |
| Ceiling sensor NEMA 4X enclosure | ACIPE |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) with rate of change not exceeding 20°F (11°C) per hour |
| Dimensions | 4.5"D x 3.4"H |
| Sensitivity | 0 to 100% (Adaptive) |
| Package Quantity | 1 |
