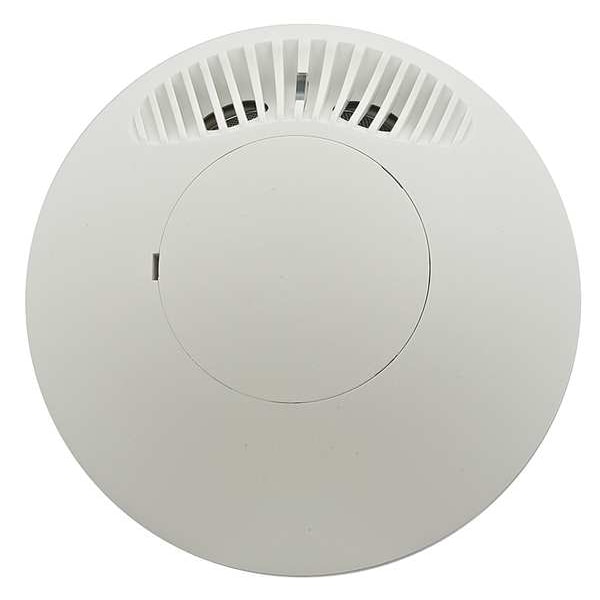

Sensor de ocupación, Ultra, 1000 pies cuadrados, Blanco
| Use With - Motion Sensing and Dimming | Hubbell CU300A, CU300HD, CU300M |
|---|---|
| Item - Motion Sensing and Dimming | Occupancy Sensor |
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Sensing Technology | Ultrasonic |
| Installation Location - Motion Sensor | Ceiling |
| Coverage at Suggested Mounting Height | 1,000 sq ft |
| Operating Voltage - Motion Sensing and Dimming | 24 V DC |
| Color - Motion Sensing and Dimming | Office White |
| Time Delay Adjustment Method - Motion Sensor | Adaptive, Manual |
| Time Delay - Motion Sensor | 8 to 40 min |
| Standards | ASHRAE 90.1, cULus Listed, UL244A |
| Coverage | 1,000 sq ft |
| Time Delay | Adaptive/Manual |
| Timer Range | 8 to 40 min. |
| Includes | Isolated Relay |
| Color | White |
| Max. Capacity @ 120VAC | Dependent on Control Unit Rating |
| Sensor Type | Ultrasonic |
| Voltage | 24VDC |
| Installation Type | Ceiling |
| For Use With | Mfr. No. CU300A/M/HD |
| Item | Occupancy Sensor |
| Suggested Mounting Height - Motion Sensor | 8 to 12 ft |
| Max. Capacity @ 277VAC | Dependent on Control Unit Rating |
| Coverage Angle - Motion Sensor | 180 deg |
| Viewing Angle | 180 deg |
| Description/Special Features | Isolated Relay and Photocell |
| Lighting Technology | LED |
| Communication Method | Hard Wired |
| Type | Sensors |
| Height | 1-1/2 in |
| Wall Plate | Not Included |
| Series | Ultrasonic |
| Overall Diameter | 4-1/2 in |
| Compatible with Manufacturer Model Number | CU300A, CU300HD, CU300M |
| Maximum Time Delay | 40 min |
| Maximum Coverage Area | 1,000 sq ft |
| Overall Width | Not Applicable |
| Maximum Mounting Height | 12 ft |
| Minimum Operating Temperature | 32 deg F |
| Compatible with Series | Ultrasonic |
| Sensor Operation | Occupancy, Photocell |
| Minimum Time Delay | 8 min |
| Installation Location | Ceiling |
| Manufacturer Warranty | Limited Lifetime |
| Power Relay Required | Yes |
| Load Rating @ 120V AC | Dependent on Control Unit Rating |
| Time Delay Adjustment Method | Adaptive |
| Compatible with Brand | Hubbell Wiring |
| Minimum Mounting Height | 8 ft |
| Overall Height | 1-1/2 in |
| Load Rating @ 277V AC | Dependent on Control Unit Rating |
| Coverage Angle | 180 deg |
| Maximum Operating Temperature | 104 deg F |
| Humidity | 0% to 95% non-condensing relative humidity |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Version | Unit with Relay and Photocell |
| Operating Cycles | 6,000 Cycles Minimum |
| Mounting Type | Ceiling Mount |
| Indicator(s) Type | Ultrasonic= Green LED |
| Supply Voltage | 24V DC From Control Unit |
| Sensitivity | 0 to 100% (Adaptive) |
| Ceiling mount raceway adapter | ACMRA |
| Item Type | Sensors |
| Photocell | Yes |
| Sensing Coverage | 1000 Square Feet |
| Voltage Rating Description | 24V DC |
| Isolated Relay | Normally open and normally closed terminals available |
| Storage Temperature | -20°F to 150°F ; 0% to 95% non-condensing relative humidity |
| Ultrasonic | Green LED |
| Material | ABS |
| Power Requirements | 24V DC nominal, 33mA from Hubbell CU series control unit |
| Application | Compatible with most LED and CFL |
| Ambient Light | 1 to 1000 foot candles |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) with rate of change not exceeding 20°F (11°C) per hour |
| Storage Temperature Range | -20°F to 150°F |
| Load Capacity | Load Is A Function Of The Control Unit |
| Ceiling mount wire guard | ACMG |
| Control Unit Manual-ON | CU300M |
| Device Color | Office White |
| Mounting Height | 8 to 12 ft |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Control Unit Auto-ON | CU300A |
| Product Type | Ceiling-sensors |
| Style | Ceiling Mount |
| Control Unit, HD, Latching, Auto/Manual-ON | CU300HD |
| Diameter | 4-1/2 in |
| Material - Mounting Hardware | Screw Mounting |
| Package Quantity | 1 |
