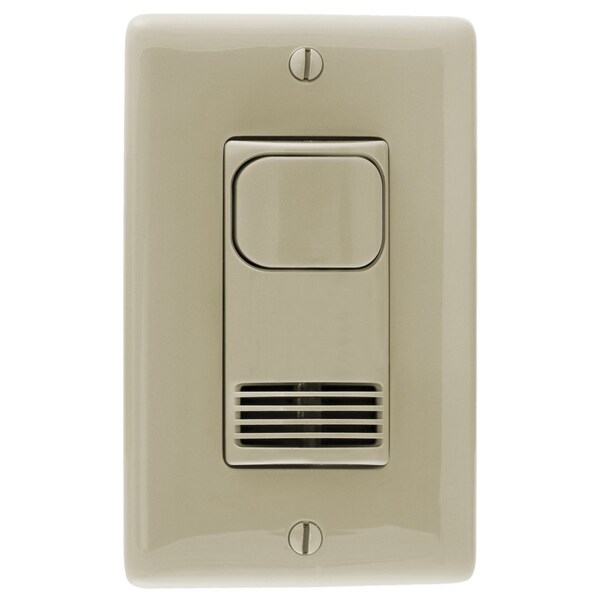

Sensor de ocupación/vacancia, doble tecnología, 1000 pies cuadrados, marfil.
| Item - Motion Sensing and Dimming | Motion Sensor |
|---|---|
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Sensing Technology | Passive Infrared /Ultrasonic |
| Installation Location - Motion Sensor | Wall Switch Box |
| Coverage at Suggested Mounting Height | 1,000 sq ft |
| Operating Voltage - Motion Sensing and Dimming | 120 V AC, 277 V AC |
| Color - Motion Sensing and Dimming | White |
| Time Delay Adjustment Method - Motion Sensor | Adaptive, Digital |
| Time Delay - Motion Sensor | 4 to 30 min |
| Description/Special Features | (1) Relay, No Button, Adaptive Technology, Install and Forget Operation |
| Standards | ASHRAE 90.1, CEC Title 24 Complaint, cULus Listed |
| Max. Capacity @ 120VAC | 1/4 HP Motor, 1000W (Fluorescent), 800W (Incandescent) |
| Coverage Angle - Motion Sensor | 180 deg |
| Time Delay | Adaptive/Digital |
| For Use With | Incandescent, LED and Fluorescent Lighting Loads |
| Max. Capacity @ 277VAC | 1800W (Fluorescent, Incandescent, LED) |
| Item | Motion Sensor |
| Watts @ 120V | 0.8 |
| Sensor Type | Dual Technology |
| Lighting Technology | Fluorescent, Incandescent |
| Coverage | 1,000 sq ft |
| Viewing Angle | 180 deg |
| Timer Range | 4 to 30 min. |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Installation Type | Wall |
| Watts @ 277V | 1,800 |
| Voltage | 120/277VAC |
| Color | Ivory |
| Suggested Mounting Height - Motion Sensor | 3 ft 6 in to 4 ft 6 in |
| Communication Method | Hard Wired |
| Number of Gangs | 1 |
| Wall Plate | Not Included |
| Maximum Operating Temperature | 104 deg F |
| Coverage Type | Small Motion |
| Minimum Time Delay | 4 min |
| Rated Frequency | 50/60 Hz |
| Nightlight | No |
| Installation Location | Wall |
| Minimum Operating Temperature | 32 deg F |
| Series | H-Moss |
| Number of Buttons | 0 |
| Dimming Method | No Dimming |
| Time Delay Adjustment Method | Adaptive |
| Dimming Type | No Dimming |
| Includes Dimming Switch | Dimming Switch Not Included |
| Includes Wall Plate | Wall Plate Not Included |
| Coverage Angle | 180 deg |
| Sensor Operation | Occupancy, Vacancy |
| Fan Rated | No |
| Includes Motion Sensor | Yes |
| Maximum Time Delay | 30 min |
| Horsepower Rating | 3/16 hp |
| Minimum Mounting Height | 42 in |
| Load Rating @ 120V AC | 1,000W (Fluorescent), 800W (Incandescent) |
| Maximum Mounting Height | 54 in |
| Maximum Coverage Area | 1,000 sq ft |
| Load Rating @ 277V AC | 1,800W (Fluorescent, Incandescent) |
| Compatible with Series | Not Applicable |
| Neutral Required | No |
| Manufacturer Warranty | 5 yr |
| Mounting Strap | Plated steel |
| Sensing Indicator | Passive Infrared, Red LED. Ultrasonic, Green LED. |
| Ambient Light | Adjustable ambient light override, 10 to 500 foot candles |
| Wire Leads | #18 AWG stranded wire, 6" long with½" stripped ends |
| Lens | Dual element pyrometer and 12 element cylindrical hard |
| Device Color | Ivory |
| Mounting Height | 42 to 54 inches above floor |
| Load Capacity | Incandescent - 0 to 800 watts, 120V AC Ballast - 0 to 1000 watts, 277V AC Ballast 0 to 1800 watts |
| Area | 1000 square foot. Area of coverage based on passive infrared technology minor motion pattern. See illustration. |
| Sensitivity | 0 to 100% (Adaptive) |
| Housing | High impact plastic (UL-94-5V) |
| Power Supply | 120/277V AC, 50/60Hz |
| Wallplate | SS26, NP26I, RCW1I |
| Operating Temperature | 32°F to 104°F (0°C to 40°C); 0% to 95% non-condensing relative humidity |
| Package Quantity | 1 |
