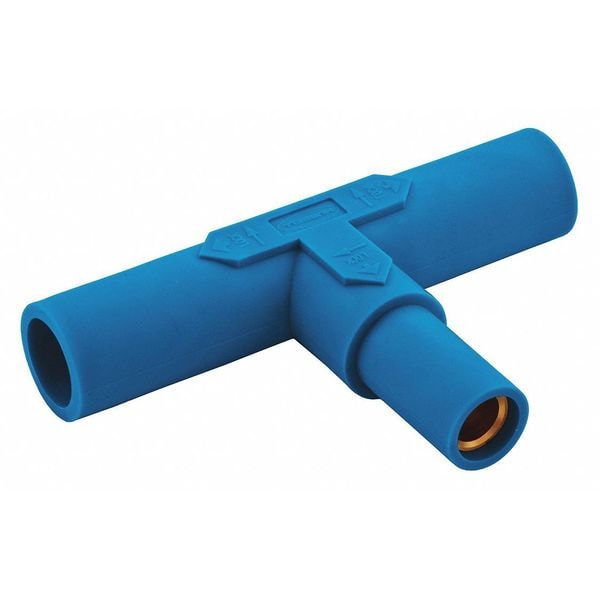

El Tee en paralelo Hubbell Wiring Device-Kellems en azul con nariz cónica, Serie 15, es ideal para conectar múltiples cables de forma segura y eficiente en instalaciones eléctricas.
| Item | Paralleling Tee |
|---|---|
| Type | Tees |
| Series | 15 |
| Terminal Connection | N/A |
| Male/Female | Female-Male-Male |
| Current Rating | 150 A |
| Voltage Rating | 250V DC, 600V AC |
| NEMA Rating | 12, 3R, 4X |
| Single Pole Device Style | Taper Nose |
| Material | Thermoplastic Elastomer |
| Amps AC/DC | 150 AC/DC |
| Standards | cUL, UL |
| Conductor Material | Brass |
| Fits | UL1691 |
| Cable Range | N/A |
| Color | Blue |
| Amps AC | 150 A |
| Mounting | Tee, Paralleling Tee Femal-Male-Male |
| Product Type | Paralleling Tee |
| Minimum Operating Temperature | -40 Degrees C |
| Overall Length | 4.22 in |
| Gender Configuration | Male-Male-Female |
| NEMA Enclosure Rating | 3R, 12, 4X |
| Contact Material | Brass |
| Housing Color | Blue |
| Maximum Operating Temperature | 75 Degrees C |
| Housing Material | Thermoplastic Elastomer |
| Overall Width | 0.86 in |
| Compatible with Series | 15 |
| Overall Height | 2.67 in |
| Display Size | Standard |
| Voltage Rating Description | 600V AC/DC |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Number Of Poles | 1-Pole |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Connectivity | Plug-In |
| Item Type | Tee |
| Application | Temporary Electrical Power |
| Material - Mounting Hardware | Cord Mounted |
| Insulation | Insulated Body |
| Current / Amperage Rating | 150 A |
| Number Of Conductors | 1 Conductor |
| Amperage Rating | 150 A |
| Style | Paralleling Tee Femal-Male-Male |
| Industry Standard(s) | National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12 |
| Package Quantity | 1 |
