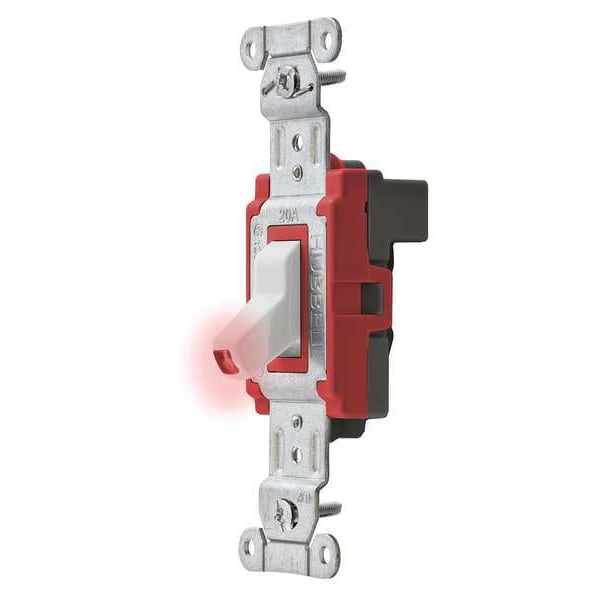

El interruptor de pared con piloto iluminado de 1 polo y 20A es ideal para ambientes con iluminación tenue. Funciona con voltajes de 120V a 277V, garantizando un rendimiento confiable y duradero.
| Item | Pilot Light Wall Switch |
|---|---|
| Switch Type | Single Pole |
| Switch Style | Toggle |
| Amps AC | 20 A |
| Color | White |
| Voltage AC | 120 to 277 |
| Locking | No |
| Switch Function | Maintained |
| Wiring Method | Back |
| Application Environment | Commercial |
| Antimicrobial | No |
| Standards | UL Listed |
| Rated HP | 1 to 2 |
| Description/Special Features | Light On with Load On |
| Overall Height | 1.7 in |
| Market | Industrial |
| Number of Switches | 1 |
| Voltage Rating | 120/277V AC |
| Horsepower Rating | 2 HP |
| Overall Width | 1.3 in |
| Housing Material | Thermoplastic |
| Resistance Properties | Impact Resistant |
| Minimum Operating Temperature | -40 deg F |
| Pilot Light | Yes |
| Current Rating | 20 A |
| Locking Style | Not Applicable |
| Wire Connection Type | Modular Wiring |
| Maximum Operating Temperature | 75 deg C |
| Style | Single Pole |
| Width | 1.3 in |
| Length | 4.18 in |
| Height | 1.74 in |
| Type | Toggle |
| Temperature Rise | 30°C maximum at rated current |
| Overload | Minimum 4.8 times rated current for 100 cycles |
| Terminal Accommodations | Uses SNAPConnect Connector |
| Dielectric Voltage | Withstands 1500V AC minimum for 1 minute |
| Contacts | Silver Alloy |
| Toggle Material | Thermoplastic |
| Terminals | Brass |
| Operating Temperature | Max continuous: 75°C continuous: -40°C without impact, Min |
| Toggle Color | White |
| Base Material | Thermoplastic, Black |
| Max. Continuous Current | 20 A |
| Max. Working Voltage | 277V AC |
| Flammability | UL 94V-2 |
| Top Material | Thermoplastic, Red |
| Series | Pilot Light |
| Indicator | Light On with Load On |
| Number Of Poles | Single Pole |
| Voltage Rating Description | 120-277 VAC |
| Temperature Rise - Max. | 30°C maximum at rated current |
| Amperage Rating | 20 A |
| Item Type | Single Pole Toggle Switch |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Industry Standard(s) | UL Listed |
| Material | Thermoplastic |
| Dimensions | 4.18 in x 1.3 in x 1.74 in |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector |
| Indicator(s) Type | Red LED |
| Current / Amperage Rating | 20 A |
| Package Quantity | 1 |
