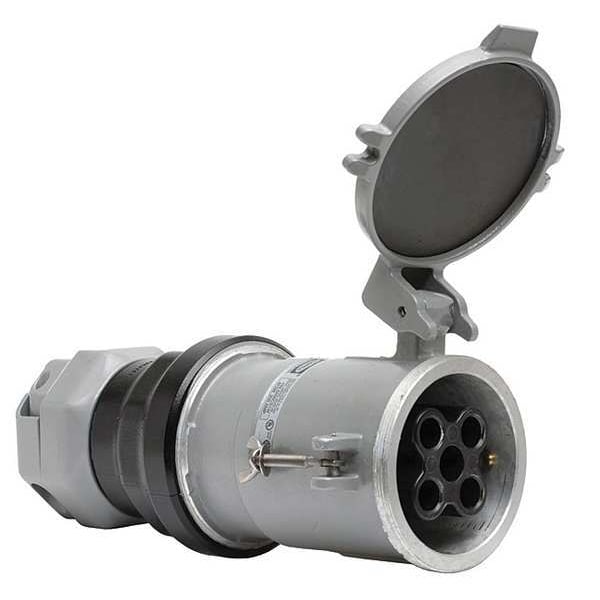

Pin and Sleeve
| Fits Brand | Hubbell Wiring Device-Kellems |
|---|---|
| Item | Pin and Sleeve |
| Grounding Style | Style 1 |
| Grounding | Grounded |
| Compatible with Series | UL 1686 Class 1 Insulgrip(R) |
| Outside Diameter | 7.39 in |
| Housing Material Grade | Valox 357 |
| Face Diameter | 6.7 in |
| Current Rating | 200 A |
| Housing Material | Thermoplastic |
| Maximum Wire Size | 1 AWG |
| Shrouded | Yes |
| Market | Industrial |
| NEMA Enclosure Rating | 4X |
| UL 94 Flammability Rating | V-0 |
| Number of Wires | 5 |
| Reverse Service | No |
| IP Rating | IP68, IP69K |
| Overall Length | 13.65 in |
| Housing Color | Black, Gray |
| Connection Orientation | Straight |
| Voltage Rating | 250V DC, 600V AC |
| Minimum Operating Temperature | -40 deg C |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| For Minimum Cable Diameter | 1 in |
| Cap Type | Spring-Loaded Cap |
| Maximum Operating Temperature | 75 deg C |
| Switch Rated | No |
| Power Indicating Light | No |
| For Maximum Cable Diameter | 2.5 in |
| Features | Pin Chamber Confines Arcing within the Interior Chamber, Spring-Loaded, Gasketed Cover for Dust-Tight Seal, Watertight Neoprene Sealing Glands for Reliable Seal |
| Wire Connection Type | Screw Terminals |
| Number of Poles | 4 |
| Standards | CSA Certified C22.2 No. 182.1, UL 1682, UL Listed and CSA Certified Type 4X |
| Type | Watertight Connector |
| Connectivity | Pressure Terminal Screws |
| Voltage Rating Description | 600V AC/250V DC |
| Current / Amperage Rating | 200 A |
| Material | Composite |
| Display Size | Standard |
| Style | Standard Service,Style 1 Grounding |
| Application | Metallic with Nylon Shroud |
| Series | UL 1686 Class 1 Insulgrip® |
| Nema Rating | Non-NEMA |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Environmental Conditions | Watertight |
| Amperage Rating | 200 A |
| Item Type | Standard |
| Insulation | Insulated Body |
| Number Of Conductors | 5-Wire Grounding |
| Material - Mounting Hardware | Cord Mounted |
| Conductor Range | #1 AWG to #250 MCM |
| Package Quantity | 1 |
