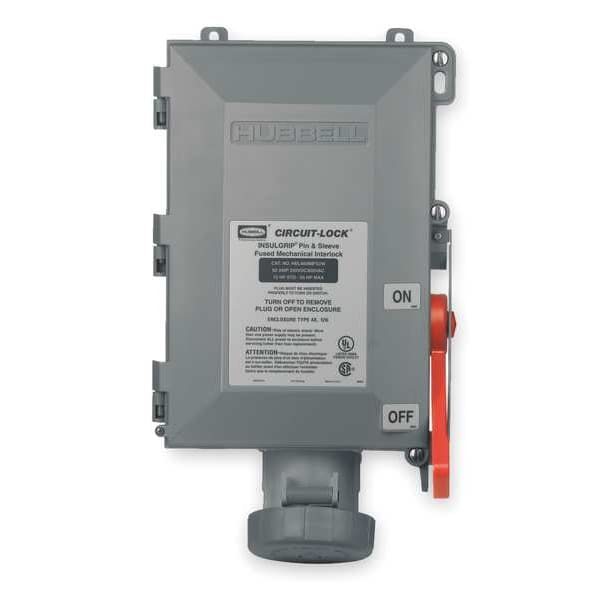

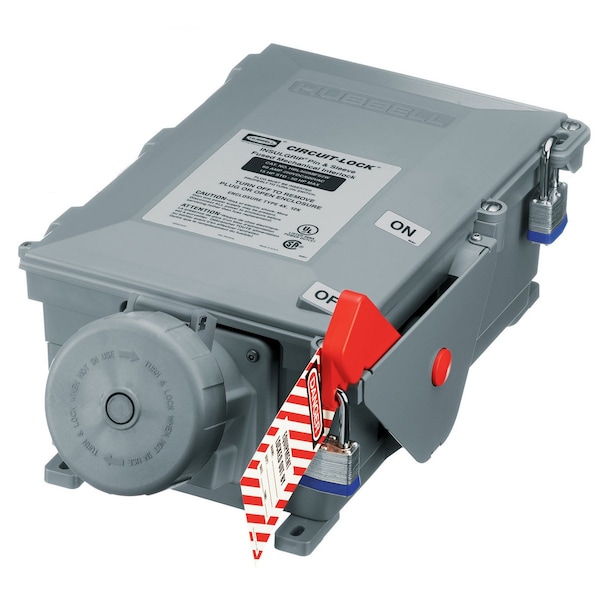

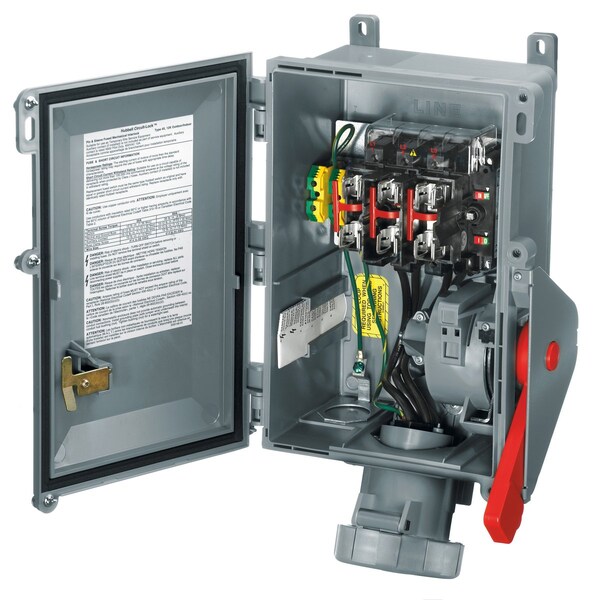

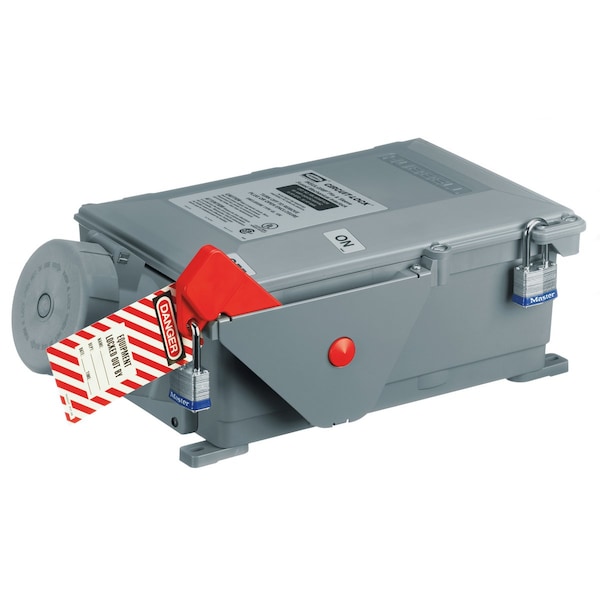

Conector de clavija y receptáculo, con interbloqueo, 60A, fusible para mayor seguridad en instalaciones eléctricas.
| Item | Mechanical Interlock Device |
|---|---|
| Type | Pin, Fused, Sleeve, Insulgrip |
| Voltage | 600V AC/250V DC |
| Amps | 60 |
| Hub | 1-1/4 in |
| Number of Poles | 3 |
| Phase | Three, Single |
| Number of Wires | 4 |
| Viewing Window | No |
| Fused / Nonfused | Fused |
| Includes | Mounting Feet |
| Use With | 5HJ29 |
| Accepts Plug Number | 5HJ29 |
| HP | 50 HP |
| Standards | cULus |
| Color | Gray |
| Minimum Wire Size | 8 AWG |
| Compatible Plug Manufacturer Part Number | 5HJ29 |
| Overall Width | 10.18 in |
| Circuit Breaker | No |
| Locking Handle | Yes |
| NEMA Enclosure Rating | Not Rated |
| Includes Mounting Hardware | Yes |
| Housing Material | Thermoplastic |
| Resistance Properties | Watertight |
| Grounding | Grounded |
| IP Rating | IP66 |
| Fuse Protection | Fused |
| UL 94 Flammability Rating | 5VA, V-0 |
| Circuit Breaker Amp Rating | 60 A |
| Reverse Service | No |
| Electrical Connection Type | Pin and Sleeve |
| Maximum Operating Temperature | 75 Degrees C |
| Fuse Type | Class J |
| Hub Diameter | 1.3 in |
| Voltage Rating | 600V AC/250V DC |
| Contact Material | Brass |
| Circuit Breaker Type | Not Applicable |
| Maximum Wire Size | 2 AWG |
| Minimum Operating Temperature | -40 Degrees C |
| Overall Height | 15.36 in |
| Horsepower Rating | 50 HP |
| Current Rating | 60 A |
| Shaft Seal | Neoprene |
| Handle | Valox |
| Assembly Screws | Stainless Steel (300 series) |
| Ingress Protection | IP66 Suitability |
| Fuse Types | UL Listed Class "J", CSA Certified HRCI-J |
| Certification | UL Listed, CSA Certified |
| Current Interrupting | Certified for current interrupting at full rated current. |
| Conduit Hub | Watertight, Zinc |
| Terminal Accommodations | #2 To #10 AWG copper wire only |
| Gaskets | Neoprene |
| Dielectric Withstand Voltage | Withstands 3,000V AC |
| Service Style | Standard |
| Impact Resistance | In accordance with UL746C |
| Poles and Wires | 3 Pole, 4 Wire |
| Base | VALOX |
| Max Working Voltage | 600V AC RMS |
| Terminal Identification | Terminals identified in accordance with North American and International conventions. |
| Short Circuit Withstand | Suitable for use on a circuit capable of delivering not more than 100,000 RMS symmetrical amperes at the voltage rating of the receptacle. |
| Enclosure Inserts | Brass |
| UV Resistance | All materials are UV Stabilized. |
| Hinge Spring | Stainless Steel (300 series) |
| Moisture Resistance | Outdoor: 4X (Watertight, Washdown) Indoor: Type 12 (Dusttight, Falling Dirt and Non-Corrosive Liquids). |
| Flammability | UL94-5VA and V-0 classification. |
| Enclosure Hinge Pins | Nickel Plated Brass |
| Operating Temperatures | Maximum Continuous: 60° C; Minimum Continuous: -40° C with o impact. |
| Amperage | 60 A |
| Endurance | Mechanical: 10,000 cycles |
| Shaft | VALOX |
| Mechanical Interlock Items | Complete Unit |
| Certifications | UL Listed, CSA Certified. |
| Mechanical Interlock Device Standard | Insulgrip |
| Package Quantity | 1 |
