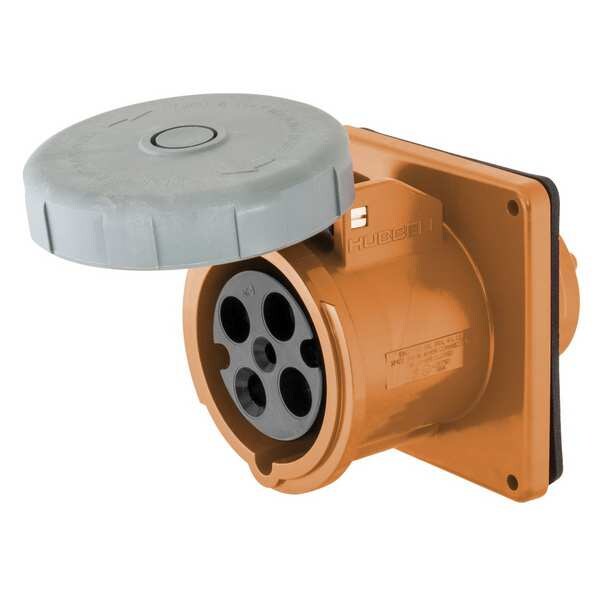

El receptáculo de clavija y enchufe de 100 A, 125/250V CA, trifásico, 3 polos, con conexión a tierra IEC, NEMA 4X de Hubbell Wiring Device-Kellems es ideal para aplicaciones industriales que requieren alto rendimiento y durabilidad.
| Item | Pin and Sleeve Receptacle |
|---|---|
| Current Rating | 100 A |
| Voltage Rating | 125/250V AC |
| Phase | Three |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | IP69K, IP68 |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Screw Terminals |
| Flange Type | Flanged |
| Switch Rated | Yes |
| Grounding Style | IEC |
| Housing Color | Orange |
| Cap Type | Spring-Loaded Cap |
| Standards | CSA Certified LR280C, File E146033, UL IEC 60309-1 IEC 60309-2, UL Listed |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Watertight |
| Color - Plugs and Receptacles | Orange |
| Body Material - Pin and Sleeve | PBT |
| HP | 3 hp |
| Item - Plugs and Receptacles | Receptacle |
| Features | Approved as a Disconnecting Means for Motor Circuits and Branch Circuits, Mates with Existing Installed Base of IEC 60309-2 Pin and Sleeve Devices, Unswitched Ground |
| Amps - Plugs and Receptacles | 100 A |
| NEMA Rating | 4X |
| Voltage - Plugs and Receptacles | 125/250V AC |
| Connection Orientation | Straight |
| Housing Material | Composite |
| Minimum Operating Temperature | -40 deg C |
| Reverse Service | No |
| Market | Industrial, Commercial |
| Horsepower Rating | 10 HP |
| Number of Gangs | 1 |
| Minimum Wire Size | 6 AWG |
| Maximum Operating Temperature | 75 deg C |
| UL 94 Flammability Rating | V-0 |
| Shrouded | Yes |
| Grounding | Grounded |
| Power Indicating Light | Yes |
| Maximum Wire Size | 1 AWG |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact |
| Number Of Conductors | 4-Wire Grounding |
| Application | Industrial/Commercial |
| Mounting Type | Screw Mount |
| Series | Advantage Switch-Rated |
| Wire Size | #6AWG - #1AWG |
| Size | Standard |
| Industry Standard(s) | UL Listed, File E146033 CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 |
| Insulation | Insulated Body |
| Material | Composite |
| Style | IP69k NEMA 4X |
| Ingress Protection | TYPE 3R,3RX,4X AND IP68,IP69K |
| Dielectric Strength | Withstand 3000V AC |
| Current / Amperage Rating | 100 A |
| Environmental Conditions | Watertight |
| Body Material | PBT |
| Package Quantity | 1 |
