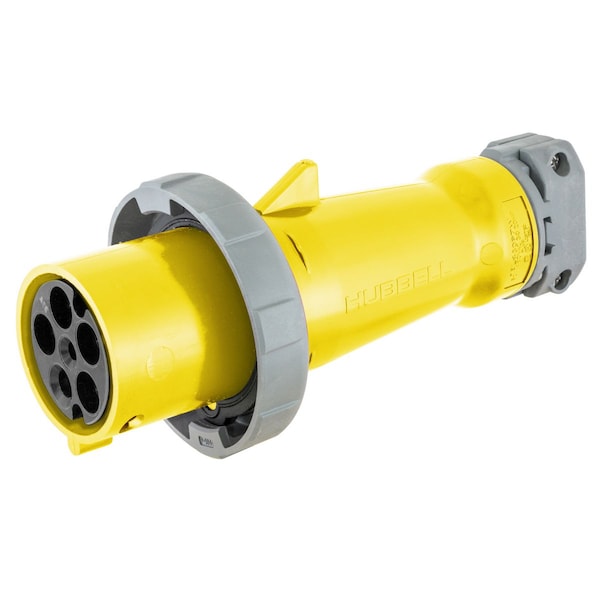

Conector de clavija y enchufe, 100 A, 120/208V AC, 4 polos, conexión a tierra de clavija y enchufe, NEMA no calificado. Ideal para aplicaciones industriales que requieren una conexión segura y confiable.
| Item | Pin & Sleeve Connector |
|---|---|
| Current Rating | 100 A |
| Voltage Rating | 120/208V AC |
| Number of Poles | 4 |
| Number of Wires | 5 |
| NEMA Enclosure Rating | Not Rated |
| Grounding Style | Pin, Sleeve |
| Housing Color | Yellow |
| Standards | UL Listed, CSA Certified |
| Application | Marine Wiring Devices |
| Current / Amperage Rating | 100 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Industry Standard(s) | CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146033 |
| Number Of Conductors | 5-Wire Grounding |
| Connectivity | Pressure Terminal Screws |
| Display Size | Standard |
| Material - Mounting Hardware | Cord Mounted |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions |
| Insulation | Insulated Body |
| Style | Reverse Service |
| Environmental Conditions | Watertight |
| Conductor Range | #3 AWG to #1/0 AWG |
| Series | Corrosion Resistant |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Package Quantity | 1 |
