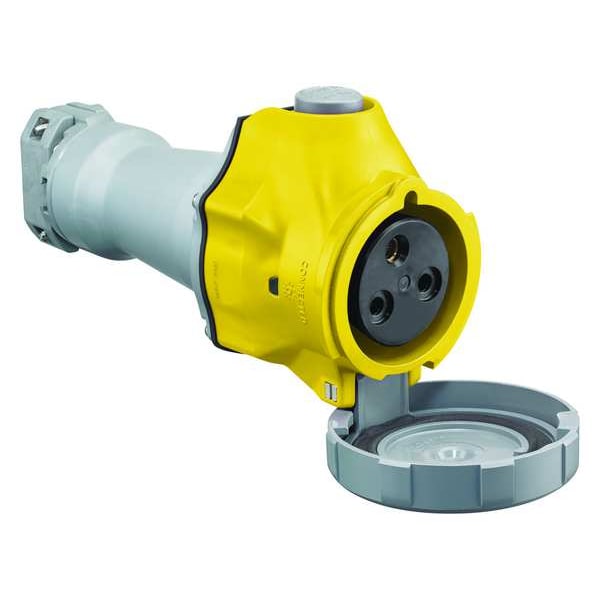

Pin & Sleeve Connector, 30 A, 125V AC, Single Phase, 2 Pole, IEC Grounding, NEMA 4X
| Item | Pin & Sleeve Connector |
|---|---|
| Current Rating | 30 A |
| Voltage Rating | 125V AC |
| Phase | Single |
| Number of Poles | 2 |
| Number of Wires | 3 |
| IP Rating | IP69K, IP68 |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Screw Terminals |
| Connection Orientation | Straight |
| Switch Rated | Yes |
| Grounding Style | IEC |
| Housing Color | Yellow |
| Cap Type | Spring-Loaded Cap |
| For Maximum Cable Diameter | 1-1/4 in |
| For Minimum Cable Diameter | 1/2 in |
| Standards | CSA Certified LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL E146033 |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight |
| Body Material | Valox 357 |
| Amps - Plugs and Receptacles | 30 |
| Color | Yellow |
| Voltage - Plugs and Receptacles | 125V AC |
| Item - Plugs and Receptacles | Watertight Pin and Sleeve Connector |
| Color - Plugs and Receptacles | Yellow |
| Amps | 30 |
| Power Indication | No |
| Body Material - Pin and Sleeve | Valox 357 |
| Voltage | 125VAC |
| Phase - Electrical | 1 |
| HP | 2 HP |
| Features | Spring-Loaded Disconnect Button |
| Housing Material Grade | Valox 357 |
| Grounding | Grounded |
| Power Indicating Light | Yes |
| Minimum Operating Temperature | -40 deg C |
| Minimum Wire Size | 12 AWG |
| Housing Material | PBT |
| Horsepower Rating | 2 HP |
| Shrouded | Yes |
| Outside Diameter | 4-1/2 in |
| UL 94 Flammability Rating | V-0 |
| Compatible with Series | Advantage Switch-Rated |
| Market | Industrial |
| Overall Length | 9.9 in |
| Reverse Service | No |
| For Environment | Wet |
| Maximum Wire Size | 8 AWG |
| Maximum Operating Temperature | 75 deg C |
| Contact Material | Beryllium Copper |
| Series | Advantage Switch-Rated |
| Style | IP69k NEMA 4X |
| Current / Amperage Rating | 30 A |
| Package Quantity | 1 |
