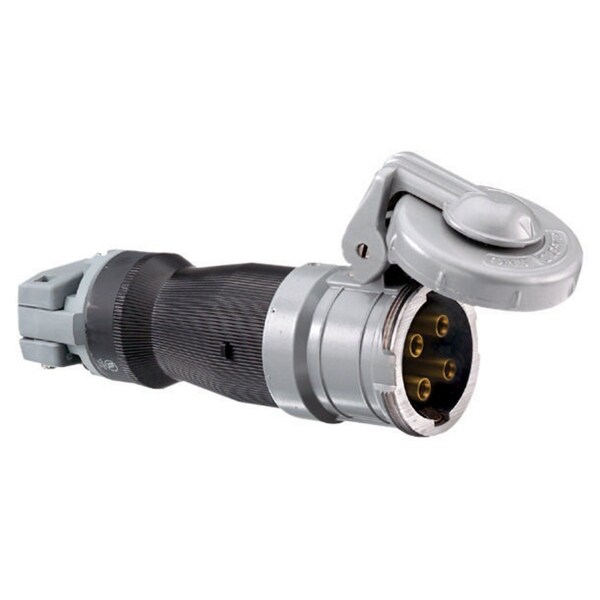

El conector de clavija y receptáculo de 30 A y 250/600V AC de 4 polos, estilo I con conexión a tierra, NEMA no clasificado es ideal para aplicaciones industriales y comerciales que requieren un alto rendimiento y durabilidad.
| Item | Pin & Sleeve Connector |
|---|---|
| Current Rating | 30 A |
| Voltage Rating | 250/600V AC |
| Number of Poles | 4 |
| Number of Wires | 5 |
| NEMA Enclosure Rating | Not Rated |
| Grounding Style | Style I |
| Standards | UL Listed, CSA Certified |
| Features | UV Stabilized |
| Material | Composite |
| Application | Metallic with Nylon Shroud |
| Style | Reversed Service,Style 1 Grounding |
| Number Of Conductors | Grounding Style 1 |
| Insulation | Insulated Body |
| Display Size | Standard |
| Connectivity | Pressure Terminal Screws |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17 Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94 Environmental - Operating Temperatures - Max. Continuous 75°C Min. -40°C w/o impact -25° with impact Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682 Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green) |
| Series | UL 1686 Class 1 Insulgrip® |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Industry Standard(s) | CSA Certified to CSA Spec. C22.2 No. 182.1 UL Listed and CSA Certified Type 4X UL Standard 1682 |
| Current / Amperage Rating | 30 A |
| Material - Mounting Hardware | Cord Mounted |
| Environmental Conditions | Watertight |
| Conductor Range | #10 AWG to #8AWG |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Package Quantity | 1 |
