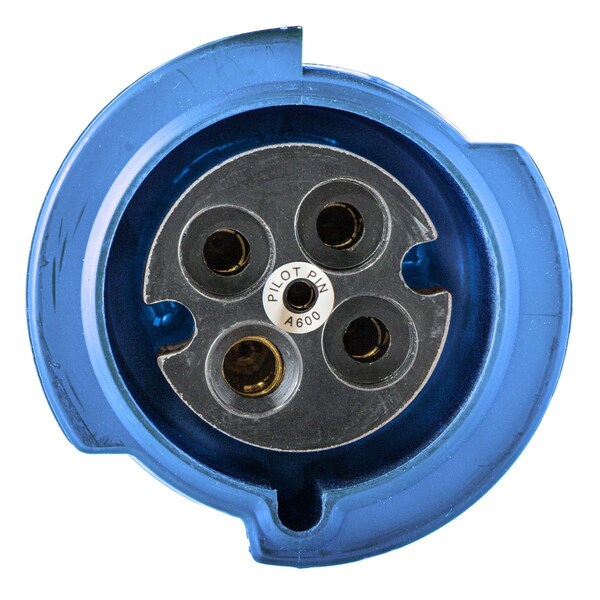

Conector de clavija y enchufe trifásico de 4 polos, no clasificado por NEMA. Perfecto para aplicaciones industriales y comerciales que requieren una conexión segura y confiable.
| Item | Pin & Sleeve Connector |
|---|---|
| Phase | Three |
| Number of Poles | 4 |
| Number of Wires | 5 |
| NEMA Enclosure Rating | Not Rated |
| Application | High Ampacity Watertight Connections |
| Material | Thermoplastic |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Connectivity | Pressure Terminal Screws |
| Material - Mounting Hardware | Cord Mounted |
| Cord Type | All Portable |
| Number Of Conductors | 5-Wire Grounding |
| Series | HBL Heavy Duty |
| Style | Standard Service |
| Insulation | Insulated Body |
| Environmental Conditions | Watertight |
| Dielectric Strength | Withstands 3000V Minimum in |
| Display Size | Standard Sized Product |
| Industry Standard(s) | CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed to UL1682 |
| Wire Size | #3 AWG to #1/0 AWG |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability -V-0 Environmental - Ingress Protection - Type 3R, 3RX, 4X and IP68, IP69k Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions |
| Package Quantity | 1 |
