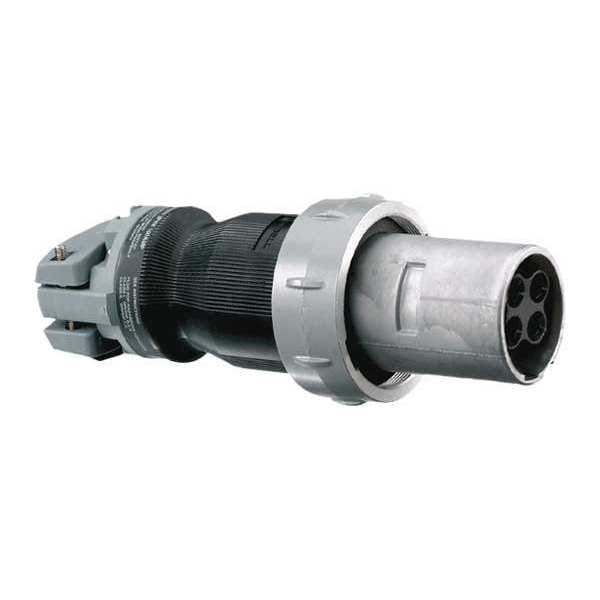

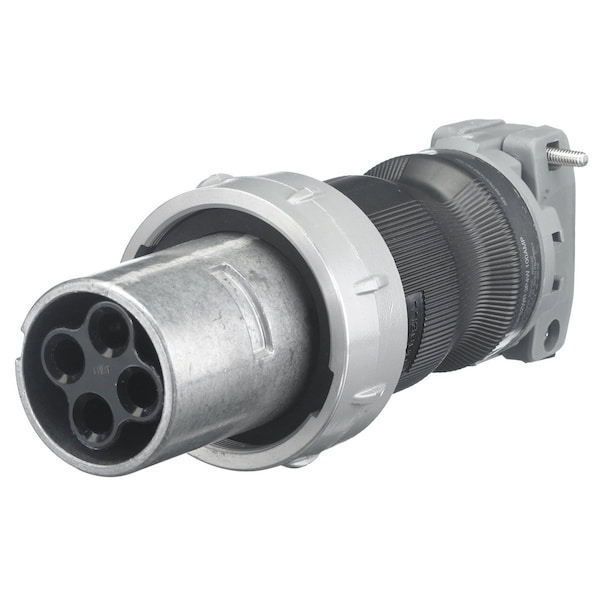

Este enchufe de pasador es ideal para aplicaciones que requieren una conexión segura y resistente. Con capacidad para 101 amperios y 600V CA, es adecuado para uso en entornos industriales y comerciales. Cumple con las normas de seguridad NEMA 4X para protección contra el ingreso de polvo y agua.
| Item | Pin & Sleeve Plug |
|---|---|
| Current Rating | 101 A |
| Voltage Rating | 600V AC |
| Phase | Single |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | Not Rated |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Terminals |
| Connection Orientation | Straight |
| Switch Rated | No |
| Grounding Style | Style 2 |
| Housing Color | Black, Gray |
| Cap Type | No Cap or Cover |
| For Maximum Cable Diameter | 1.94 in |
| For Minimum Cable Diameter | 0.925 in |
| Standards | CSA C22.2 No. 159, CSA Certified, UL 1010, UL 1682, UL 50, UL Listed |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Features | All-Brass Sleeve Contacts Provide Reliable Electrical Contact, Catalog Number and Rating Visible While in Use, Locking Ring Provides UL Type 4X Watertight, Dust-Tight Seal |
| Overall Length | 12.63 in |
| Outside Diameter | 4.92 in |
| Housing Material | Non-Metallic |
| Reverse Service | Yes |
| Shrouded | Yes |
| Grounding | Grounded |
| Maximum Operating Temperature | 75 deg C |
| UL 94 Flammability Rating | V-0 |
| Minimum Operating Temperature | -40 deg C |
| Maximum Wire Size | 2 AWG |
| Power Indicating Light | No |
| Minimum Wire Size | 4 AWG |
| Pin Material | Brass |
| Market | Industrial |
| Mounting Box | Stainless Steel |
| Hub Style | Reversed |
| Package Quantity | 1 |
