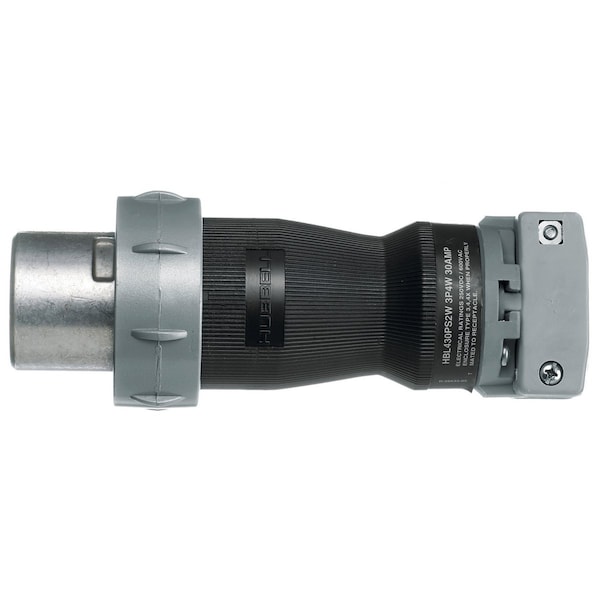

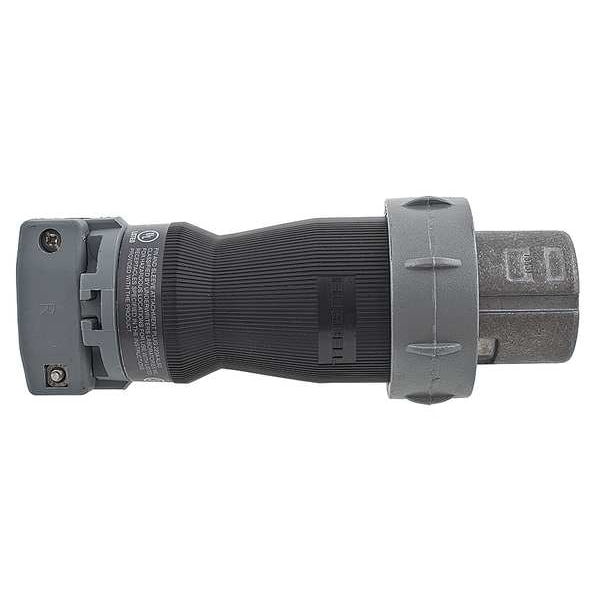

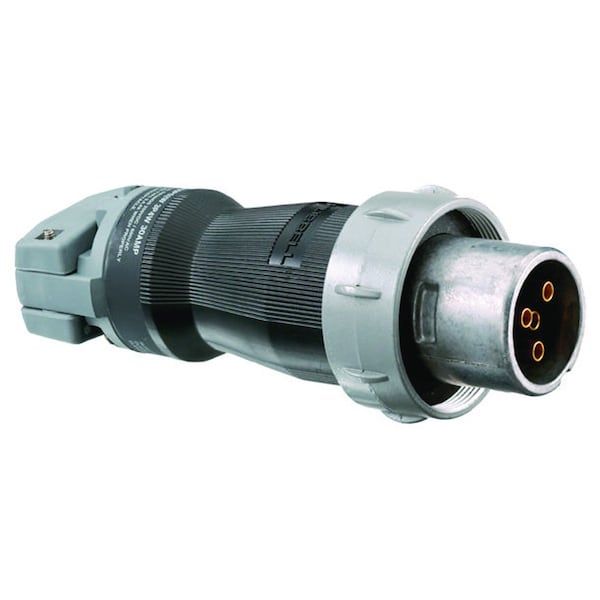

Pin & Sleeve Plug, 30 A, 600V AC, Three Phase, 3 Pole, Style 2 Grounding, NEMA 4X
| Item | Pin & Sleeve Plug |
|---|---|
| Current Rating | 30 A |
| Voltage Rating | 600V AC |
| Phase | Three |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | Not Rated |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Terminals |
| Connection Orientation | Straight |
| Switch Rated | No |
| Grounding Style | Style 2 |
| Housing Color | Gray |
| Cap Type | No Cap or Cover |
| For Maximum Cable Diameter | 0.78 in |
| For Minimum Cable Diameter | 0.36 in |
| Standards | CSA Certified C22.2 No. 159, CSA Certified Type 4X, UL 1010, UL 1682, UL 50, UL Listed |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Features | All-Brass Sleeve Contacts Provide Reliable Electrical Contact, Catalog Number and Rating Visible While in Use, Locking Ring Provides UL Type 4X Watertight, Dust-Tight Seal |
| Body Material - Pin and Sleeve | Valox 357 Housing and Aluminum Shroud |
| Voltage - Plugs and Receptacles | 600V AC/250V DC |
| Amps | 30 |
| Item - Plugs and Receptacles | Watertight Pin and Sleeve Plug |
| Phase - Electrical | 3 |
| Color | Gray |
| Body Material | Valox 357 Housing and Aluminum Shroud |
| Amps - Plugs and Receptacles | 30 |
| Color - Plugs and Receptacles | Gray |
| Voltage | 600VAC/250VDC |
| Outside Diameter | 3-1/2 in |
| Overall Length | 7.54 in |
| Maximum Wire Size | 8 AWG |
| Compatible with Series | Insulgrip |
| Shrouded | Yes |
| Power Indicating Light | No |
| Grounding | Grounded |
| UL 94 Flammability Rating | V-0 |
| Reverse Service | No |
| Maximum Operating Temperature | 75 deg C |
| Minimum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40 deg C |
| Housing Material | Non-Metallic |
| Hub Style | Standard |
| Mounting Box | Stainless Steel |
| Package Quantity | 1 |
