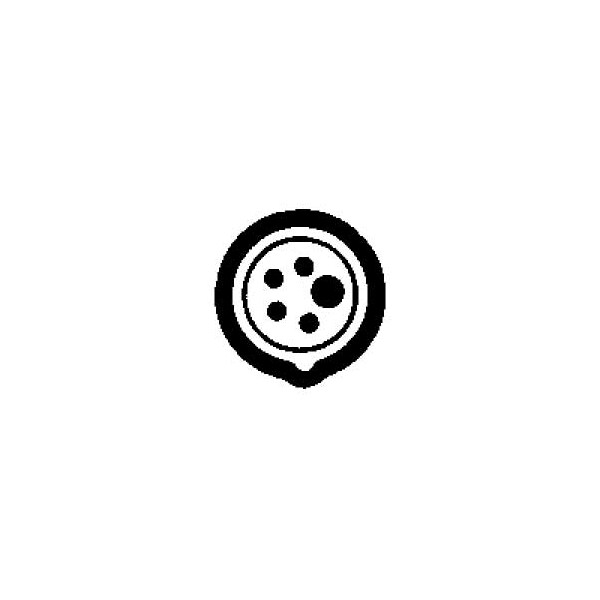

Este enchufe de pasador y clavija es ideal para aplicaciones de 60 A y 120/208V CA trifásico. Cuenta con 4 polos, conexión a tierra IEC y no está clasificado por NEMA.
| Item | Pin & Sleeve Plug |
|---|---|
| Current Rating | 60 A |
| Voltage Rating | 120/208V AC |
| Phase | Three |
| Number of Poles | 4 |
| Number of Wires | 5 |
| IP Rating | IP67 |
| NEMA Enclosure Rating | Not Rated |
| Wire Connection Type | Terminals |
| Connection Orientation | Straight |
| Switch Rated | No |
| Grounding Style | IEC |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| For Maximum Cable Diameter | 0.83 in |
| For Minimum Cable Diameter | 0.83 in |
| Standards | CSA Standard C22.2 No. 182.1, UL Classified to IEC60309-1, UL Listed, File E146032 |
| Resistance Properties | Impact Resistant, Moisture Resistant |
| Phase - Electrical | 3 Y |
| Body Material | Zytel 801 Nylon |
| Color | Blue |
| Features | Watertight and Abuse Resistant |
| Amps - Plugs and Receptacles | 60 |
| Color - Plugs and Receptacles | Blue |
| Body Material - Pin and Sleeve | Zytel 801 Nylon |
| Voltage | 120/208VAC |
| Item - Plugs and Receptacles | Watertight Pin and Sleeve Plug |
| Amps | 60 |
| Voltage - Plugs and Receptacles | 120/208V AC |
| HP | 3 hp |
| Material | Composite |
| Overall Length | 10.14 in |
| Outside Diameter | 4.48 in |
| Application | High Ampacity Connections |
| Maximum Operating Temperature | 75 deg C |
| Maximum Wire Size | 2 AWG |
| Shrouded | Yes |
| Face Diameter | 2.72 in |
| Minimum Wire Size | 8 AWG |
| Grounding | Grounded |
| Housing Material | Non-Metallic |
| Reverse Service | No |
| UL 94 Flammability Rating | HB |
| Power Indicating Light | No |
| Horsepower Rating | 3 HP |
| Minimum Operating Temperature | -40 deg C |
| Hub Style | Standard |
| Display Size | Standard Sized |
| Series | HBL Heavy Duty |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Industry Standard(s) | CSA Standard C22.2 No. 182.1 UL Classified to IEC60309-1 UL Listed, File E146032 |
| Wire Size | #8 AWG to #2 AWG |
| Connectivity | Pressure Terminal Screws |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Min Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability - HB or Better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperature - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing. Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions |
| Style | Plug |
| Current / Amperage Rating | 60 A |
| Material - Mounting Hardware | Cord Mounted |
| Cord Type | All Portable |
| Environmental Conditions | Watertight |
| Package Quantity | 1 |
