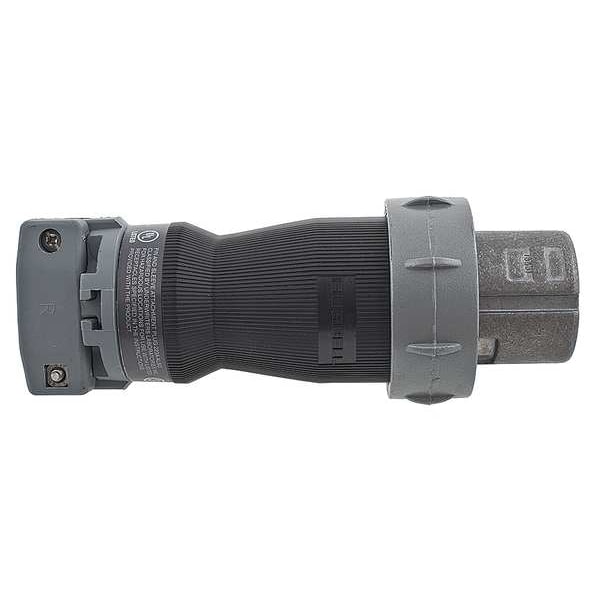

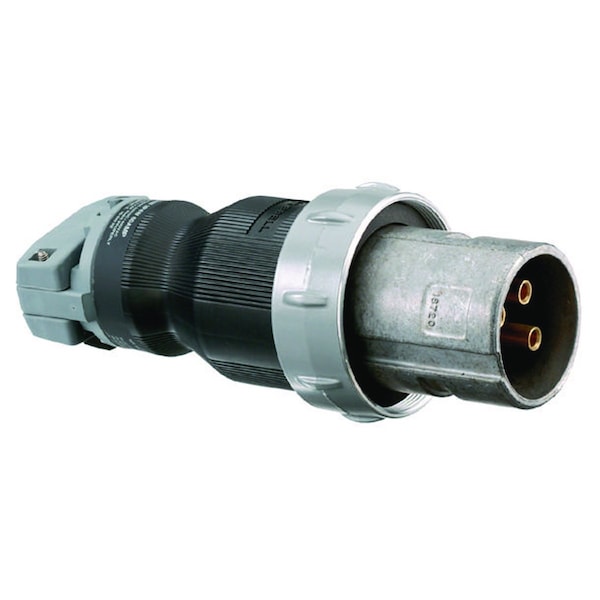

Este enchufe de clavija y pasador es ideal para aplicaciones de 60 A y 600V CA, con conexión trifásica de 3 polos y estilo 2 de puesta a tierra. Cumple con los estándares NEMA 4X para garantizar un rendimiento óptimo en entornos exigentes.
| Item | Pin & Sleeve Plug |
|---|---|
| Current Rating | 60 A |
| Voltage Rating | 600V AC |
| Phase | Three |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | Not Rated |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Terminals |
| Connection Orientation | Straight |
| Switch Rated | No |
| Grounding Style | Style 2 |
| Housing Color | Gray |
| Cap Type | No Cap or Cover |
| For Maximum Cable Diameter | 1.45 in |
| For Minimum Cable Diameter | 1/2 in |
| Standards | CSA Certified C22.2 No. 159, CSA Certified Type 4X, UL 1010, UL 1682, UL 50, UL Listed |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Amps | 60 |
| Voltage - Plugs and Receptacles | 600V AC/250V DC |
| Item - Plugs and Receptacles | Watertight Pin and Sleeve Plug |
| Voltage | 600VAC/250VDC |
| Body Material - Pin and Sleeve | Valox 357 Housing and Aluminum Shroud |
| Amps - Plugs and Receptacles | 60 |
| Phase - Electrical | 3 |
| Body Material | Valox 357 Housing and Aluminum Shroud |
| Features | All-Brass Sleeve Contacts Provide Reliable Electrical Contact, Catalog Number and Rating Visible While in Use, Locking Ring Provides UL Type 4X Watertight, Dust-Tight Seal |
| Color | Gray |
| Color - Plugs and Receptacles | Gray |
| Overall Length | 9.6 in |
| Outside Diameter | 3.7 in |
| Minimum Operating Temperature | -40 deg C |
| Power Indicating Light | No |
| Compatible with Series | Insulgrip |
| Maximum Wire Size | 4 AWG |
| Reverse Service | No |
| Minimum Wire Size | 6 AWG |
| UL 94 Flammability Rating | V-0 |
| Maximum Operating Temperature | 75 deg C |
| Shrouded | Yes |
| Housing Material | Non-Metallic |
| Grounding | Grounded |
| Hub Style | Standard |
| Mounting Box | Stainless Steel |
| Package Quantity | 1 |
