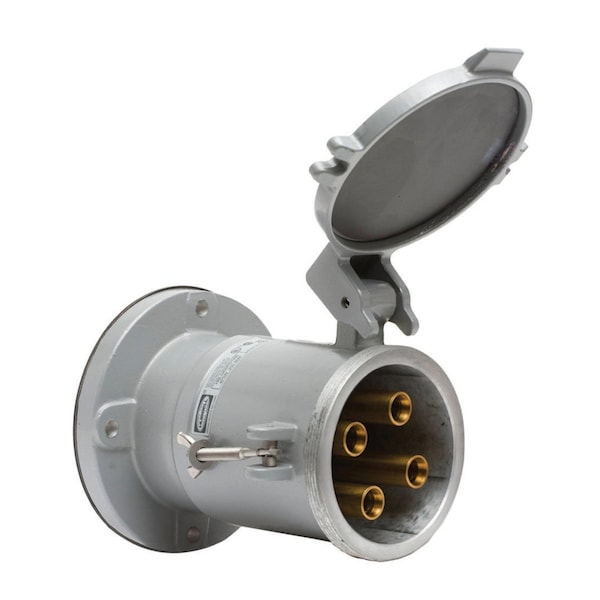

Este receptáculo Pin & Sleeve de Hubbell Wiring Device-Kellems es ideal para aplicaciones de 200 A y 600V CA en entornos monofásicos. Con 3 polos y conexión a tierra estilo 1, cumple con los estándares NEMA 3, 4 y 4X para garantizar la seguridad y fiabilidad en entornos industriales y comerciales.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 200 A |
| Voltage Rating | 600V AC |
| Phase | Single |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | IP66 |
| NEMA Enclosure Rating | 4X, 4, 3 |
| Wire Connection Type | Screw Terminals |
| Flange Type | Flanged |
| Grounding Style | Style 1 |
| Housing Color | Gray |
| Cap Type | No Cap or Cover |
| Standards | UL 1682, UL50 and UL1010, CSA C22.2 No. 182.1, No.94 and No. 159, CSA C22.2 No.0.17 |
| Material | Thermoplastic |
| NEMA Rating | 3, 4, 4X |
| Body Material | Epoxy Painted Aluminum |
| Voltage | 250V DC/600V AC |
| Application | Metallic with Nylon Shroud |
| Wire Size | 1 to 250 KCMIL |
| Operating Temp. Range | -40 to 75° C |
| Series | UL 1686 Class 1 Insulgrip® |
| Material - Mounting Hardware | Screw Mounting |
| Current / Amperage Rating | 200 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Wattage | 120000 |
| Display Size | Standard Sized Product |
| Style | Reversed Service,Style 1 Grounding |
| Connectivity | Pressure Terminal Screws |
| Environmental Conditions | Watertight |
| Package Quantity | 1 |
