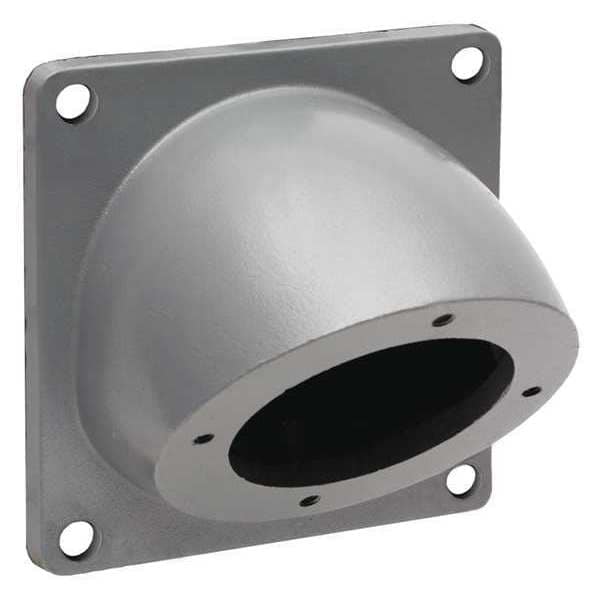

Este receptáculo de clavija y enchufe de 200 A y 600V CA es ideal para aplicaciones trifásicas. Cuenta con 3 polos y está diseñado para proporcionar una conexión segura y confiable. Fabricado por Hubbell, líder en dispositivos de cableado.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 200 A |
| Voltage Rating | 600V AC |
| Phase | Three |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | Not Rated |
| NEMA Enclosure Rating | Not Rated |
| Wire Connection Type | Screw Terminals |
| Flange Type | Flanged |
| Housing Color | Gray |
| Cap Type | No Cap or Cover |
| Standards | UL Listed |
| Resistance Properties | Impact Resistant |
| Box Type | Four-Way Back Box |
| Material | Thermoplastic |
| Includes | Mounting Screws |
| Body Material | Thermoplastic |
| Angle | 45 Degree |
| Use With | Metallic, Standard Sized Product |
| Hub Diameter | Not Applicable |
| Number of Gangs | 1 |
| Maximum Operating Temperature | 75 deg C |
| Hub Type | Dead End |
| Compatible with Series | Hubbell |
| Box Angle | 45 deg |
| Material Type | Metallic |
| Mount Type | Surface |
| UL 94 Flammability Rating | V-0 |
| Minimum Operating Temperature | -40 deg C |
| For Use With | Insulgrip Pin and Sleeve |
| Terminal Connection | Screw |
| Wire Size | 2 AWG to 4/0 AWG |
| Display Size | Standard Sized Product |
| Series | Back Boxes and Adapters |
| Application | Metallic |
| Construction | Cast |
| Number Of Outlets | Accepts 1-Device |
| Environmental Conditions | Watertight |
| Material - Mounting Hardware | Screw Mounting |
| Current / Amperage Rating | 200 A |
| Wattage | 120000 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max Working Voltage - 600V AC RMS Environmental - Flammability - UL94-5VA and V-0 classification Environmental - Operating Temperatures - Max. Continuous: 75° C Min. Continuous: -40° C w/o impact Mechanical - Impact Resistance - In accordance with UL746C Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Connectivity | Pressure Terminal Screws |
| Style | 45 Degree |
| Knockouts | None |
| Industry Standard(s) | UL Listed |
| Package Quantity | 1 |
