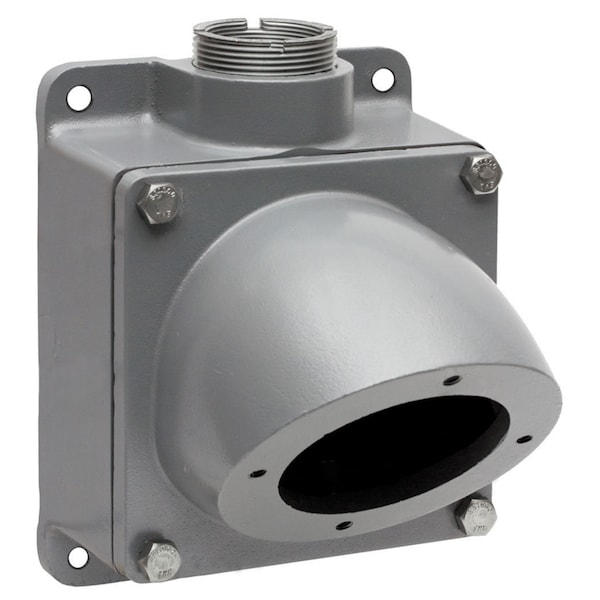

Ps, Ins, 4Way Box, 200A, 2In Hub Hubbell
| Item | Ps,Ins,4Way Box,200A,2 1/2In Hub Hubbell |
|---|---|
| Type | Metallic |
| Box Type | Feed Through |
| Voltage | 600V AC |
| Angle | 15 Degree |
| Hub | 2-1/2 in |
| Material | Aluminum |
| Use With | 200A Insulgrip Devices |
| Standards | UL Listed, CSA Certified, UL746C |
| Features | UV Stabilized |
| Application | Metallic |
| Operating Temp. Range | -40° C to 75° C |
| IP Rating | IP67 |
| Display Size | For 200 Amp Devices |
| Construction | Cast |
| Knockouts | 2 1/2" NPT Hub |
| Series | Back Boxes and Adapters |
| Cable Entry | Through Hub |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Style | 45 Degree |
| Industry Standard(s) | UL Listed |
| Number Of Outlets | Accepts 1-Device |
| Item Type | Mounting Box |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max Working Voltage - 600V AC RMS Environmental - Flammability - UL94-5VA and V-0 classification Environmental - Operating Temperatures - Max. Continuous: 75° C Min. Continuous: -40° C w/o impact Mechanical - Impact Resistance - In accordance with UL746C Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions |
| Material - Mounting Hardware | Mounting Screws |
| Package Quantity | 1 |
