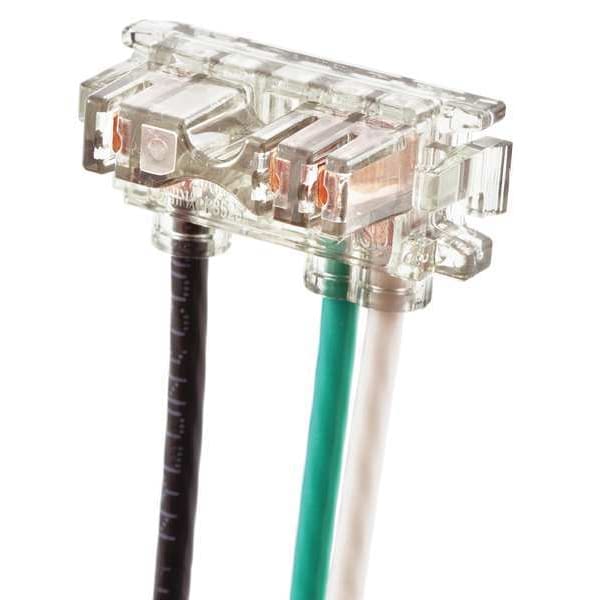

Mod de cableado de toma de corriente, 125VAC, 6 pulgadas, trenzado. Producto de alta calidad para instalaciones eléctricas seguras y confiables.
| Item | SNAPConnect Connector |
|---|---|
| Type | Pigtailed Connector |
| Color | Clear |
| Material | Polycarbonate |
| Current Rating | 15 A - 20 A |
| For Use With | SNAPconnect(R) II Receptacles |
| Standards | CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186 |
| Voltage | 125 V |
| Wire Length | 6 in |
| Amps | 15, 20 |
| Number of Wires | 3-Wire |
| Number of Poles | 2-Pole |
| Wire Type | Stranded |
| Phase | Single Phase |
| Lead Length | 6 in |
| Voltage Rating | 125 V |
| Series | Extra Heavy Duty |
| Insulation | Insulated Body |
| Nema Rating | Non-NEMA |
| Dielectric Strength | Withstands 2,000V minimum |
| Wire Size | #12 AWG |
| Dimensions | 1.48 in x 0.78 in x 0.63 in |
| Amperage | 20 A |
| Number Of Conductors | 3-Wire Grounding |
| Display Size | Standard |
| Connectivity | Connectorized |
| Brand | Hubbell Wiring Device-Kellems |
| Carton Quantity | 20 |
| Cord Dia. Range | Pre-Wired #12 THHN |
| Module Type | Receptacle |
| Housing Material | Polycarbonate |
| Maximum Operating Temperature | 75 deg C |
| Application | Straight Blade Devices |
| For Location | Indoor |
| Wire Connection Types | Snap-In Module |
| Connector Type | Pigtail |
| Housing Color | Clear |
| Conductor Type | THHN |
| Minimum Operating Temperature | -40 deg C |
| Terminal Body | PBT |
| Flammability | UL 94V-2 |
| Terminal Identification | Terminal Wire Leads- Identified in accordance with UL 498 |
| Wire | #12 AWG, T90 Nylon FT-1, PVC 90°C (min) |
| Dielectric Voltage | Withstands 2,000V minimum |
| Operating Temperatures | Maximum continuous 75°C; minimum -40°C (w/o impact) |
| Current Interrupting | Receptacle certified for current interrupting at full rated current |
| Package Quantity | 1 |
