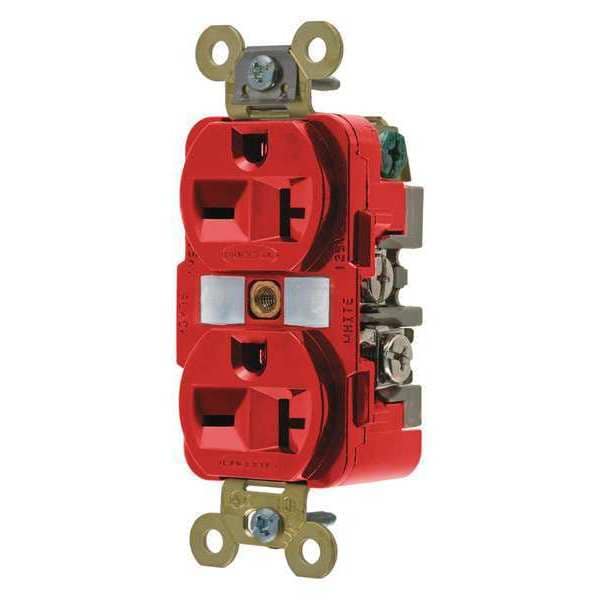

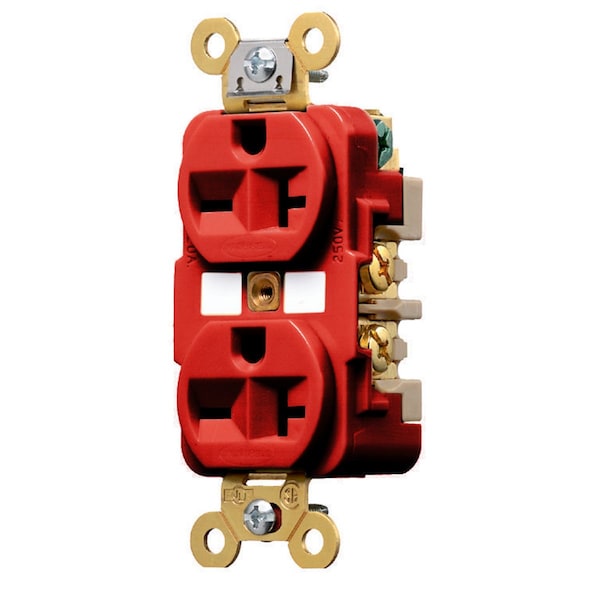

Receptacle, 20 A, 250V, Red.
| Item | Traditional Duplex |
|---|---|
| Body Material - Pin and Sleeve | PBT |
| Type | Standard Duplex |
| Color - Plugs and Receptacles | Red |
| Phase | Single Phase |
| Standards | UL 498, CSA |
| Color | Red |
| Dielectric Strength | Withstands 2,000V minimum |
| Voltage Rating | 250 V |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Mounting Hardware Material | Screw Mounting |
| Current Rating | 20 A |
| Nema Rating | 6-20R |
| Display Size | Standard Sized Product |
| Connectivity | Screw Terminals |
| Carton Quantity | 10 |
| Weight | 0.25 lb |
| Amperage | 20 A |
| Application | Extra Heavy Duty |
| Brand | Hubbell Wiring Device-Kellems |
| Wire Size | #14 AWG to #10 AWG |
| Number Of Poles | 2-Pole |
| Maximum Horsepower | 2 |
| Style | Finder Groove Face |
| Series | Extra Heavy Duty |
| UPC | 783585000000 |
| Wattage | 5000 W |
| Number Of Wires | 3-Wire |
| Environmental Rating | Indoor Dry Unless Protected By Additional Means |
| Operating Temp. Range | -40 to 75° C |
| Package Quantity | 1 |
