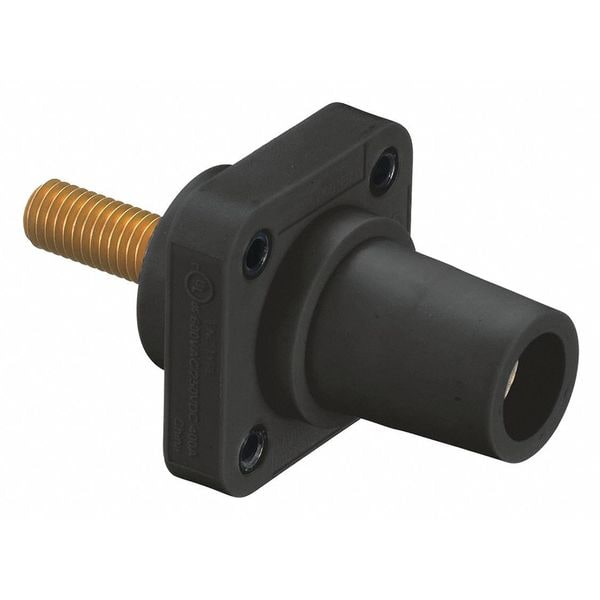

Receptacle, Blk, Female, Stud, Taper Nose
| Item | Receptacle |
|---|---|
| Type | Receptacle |
| Series | 16 |
| Terminal Connection | Threaded Stud |
| Male/Female | Female |
| Current Rating | 400 A |
| Voltage Rating | 250V DC, 600V AC |
| NEMA Rating | 12, 3R, 4X |
| Amps AC/DC | 300/400AC/DC |
| Standards | ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed |
| Cable Range | N/A |
| Color | Black |
| Material | Thermoplastic Elastomer |
| Single Pole Device Style | Taper Nose |
| Fits | UL1691 |
| Conductor Material | Brass |
| Mounting | Threaded Stud |
| Power Terminals Wire Size | #4 to 4/0 |
| Amps AC | 400 A |
| Overall Length | 3.67 in |
| Compatible with Series | 16 |
| Mounting Style | Threaded Mounting |
| Contact Material | Brass |
| End Type | Taper Nose |
| Maximum Wire Size | 4/0 AWG |
| Connection Orientation | Straight |
| NEMA Enclosure Rating | 3R, 12, 4X |
| Flange Shape | Square |
| Minimum Wire Size | 4 AWG |
| Gender | Female |
| Overall Width | 2.2 in |
| Terminal Connection Type | Threaded Stud |
| For Location | Indoor |
| Housing Material | Thermoplastic Elastomer |
| Phase | Single |
| Housing Color | Black |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number Of Wires | 1-Wire |
| Wattage | 240,000 |
| Item Type | Panel Mount Receptacle |
| Style | Stud Type, Threaded Hole Mounting, Female |
| Voltage Rating Description | 600V AC/DC |
| Wire Size | #4 AWG to #4/0 AWG |
| Amperage Rating | 400 A |
| Industry Standard(s) | National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12 |
| Display Size | Standard Sized Product |
| Material - Mounting Hardware | Threaded Thru-Hole |
| Performance | Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #4 to 4/0 AWG |
| Current / Amperage Rating | 400 A |
| Connectivity | Stud Type |
| Number Of Poles | 1-Pole |
| Application | High Ampacity Connections |
| Package Quantity | 1 |
