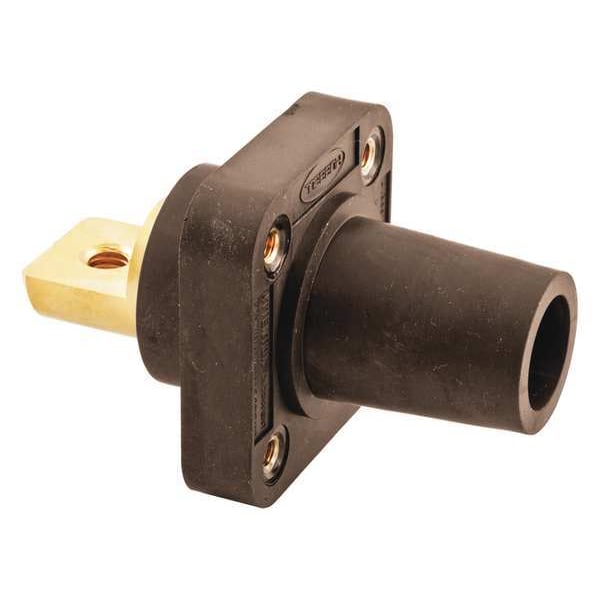

Este receptáculo de color marrón con conexión hembra y nariz cónica es ideal para aplicaciones eléctricas. Fabricado por Hubbell Wiring Device-Kellems, cumple con los más altos estándares de calidad y seguridad.
| Item | Receptacle |
|---|---|
| Type | Receptacle |
| Series | 16 |
| Terminal Connection | Double Set Screw |
| Male/Female | Female |
| Current Rating | 400 A |
| Voltage Rating | 250V DC, 600V AC |
| NEMA Rating | 12, 3R, 4X |
| Fits | UL1691 |
| Conductor Material | Brass |
| Amps AC/DC | 300/400AC/DC |
| Cable Range | 4 to 4/0 |
| Standards | ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed |
| Color | Brown |
| Power Terminals Wire Size | #4 to 4/0 |
| Mounting | Threaded Hole |
| Material | Thermoplastic Elastomer |
| Single Pole Device Style | Taper Nose |
| Amps AC | 400 A |
| Overall Width | 2.2 in |
| Maximum Wire Size | 4/0 AWG |
| Housing Color | Brown |
| Gender | Female |
| Flange Shape | Square |
| Connection Orientation | Straight |
| Overall Length | 3.57 in |
| Phase | Single |
| Minimum Wire Size | 4 AWG |
| Includes Mounting Hardware | Yes |
| Contact Material | Brass |
| UL 94 Flammability Rating | HB |
| Housing Material | Thermoplastic Elastomer |
| End Type | Taper Nose |
| NEMA Enclosure Rating | 3R, 12, 4X |
| Mounting Style | Threaded Mounting |
| For Location | Indoor |
| Stud Thread Size | 4x #10-32 (Mounting Hole); 5/16"-18 UNC-2B (Threaded Hole Termination) |
| Compatible with Series | 16 |
| Terminal Connection Type | Bus Bar |
| Voltage Rating Description | 600V AC/DC |
| Performance | Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #4 to 4/0 AWG |
| Industry Standard(s) | National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12 |
| Wattage | 240,000 |
| Wire Size | #4 AWG to #4/0 AWG |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Application | High Ampacity Connections |
| Display Size | Standard Sized Product |
| Number Of Poles | 1-Pole |
| Amperage Rating | 400 A |
| Item Type | Flanged Single |
| Current / Amperage Rating | 400 A |
| Connectivity | Screw Terminals |
| Style | Bus Bar Mount Female |
| Material - Mounting Hardware | Screw Mounting |
| Package Quantity | 1 |
